Nema 23 Stepper Motor Linear Actuator, 2 Phase, 3A, 1.2Nm

0 reviews • Write a review

from

$169.54

Ex Tax: $169.54

Stock: In Stock
Model: RDDLZ-STEPL-312
Weight: 1.00
SKU: RDDLZ-STEPL-312

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

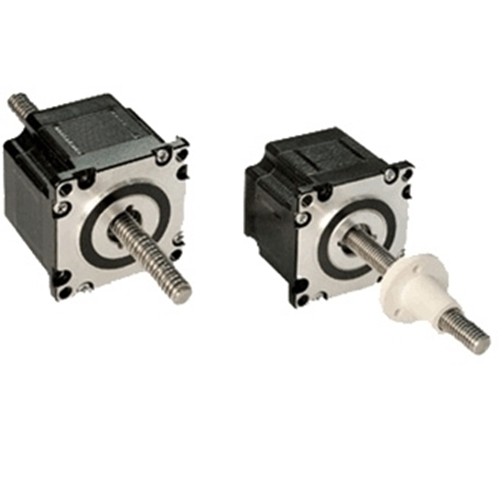

Nema 23 stepper motor linear actuator is high performance, precision positioning drive unit with 152mm length leadscrew and 2 phase stepper motor. Current per phase 3 amp, holding torque of 1.2 Nm, good quality at low cost.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	57H262-3004AST	57H262-3004GTS
Weight	4 kg
Motor Length	62 mm
Phase	2 phase
Step Angle	1.8°
Rated Current	3 A
Resistance	0.8 Ω
Holding Torque	1.2 Nm
Rotor Inertia	300 g-cm²

Select Leadscrew
Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
0.394	10	0.079	2	0.00039	0.01
0.394	10	0.157	4	0.00079	0.02
0.394	10	0.394	10	0.00197	0.05
Note: Screw of 8mm diameter is made of copper, and the screw of 10mm diameter is made of plastic.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=62mm

2. External shaft style

L=62mm

Details

Tips: Driving power of stepper motor linear actuator
The operating characteristics of stepper motor linear actuator is closely related with matching driving power. The driving power is to provide the pulse sequence that is sent by numerical control device automatically for each phrase winding according to the required power distribution mode so as to drive the motor rotation. Its control circuit consists of a distributor and a power amplifier.

A series of continuous pulses sent by the numerical control device are allocated to each winding of the stepper motor in a certain order through the distributor, so that each phase winding can be connected to and cut off according to the predetermined control mode. Therefore, we need to determine the working state of the distributor according to the electrified mode of the stepper motor when designing the distributor.
The pulsing signal power of the distributor output is small while the pulse current required by the winding of the stepper motor reaches a few amperes. So the impulse sent by the distributor must be magnified to control the running of the stepper motor.
