Tension And Compression Load Cell, Threaded Inline, 0-20kN

0 reviews • Write a review

from

$176.89

Ex Tax: $176.89

Stock: In Stock
Model: RDDLZ-LC-107
Weight: 1.00
SKU: RDDLZ-LC-107

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

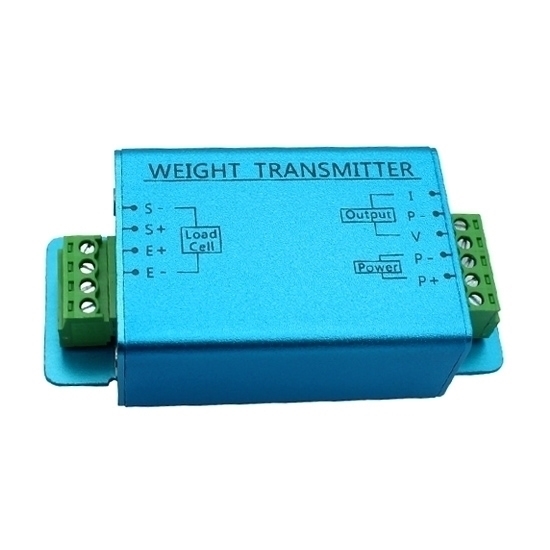

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

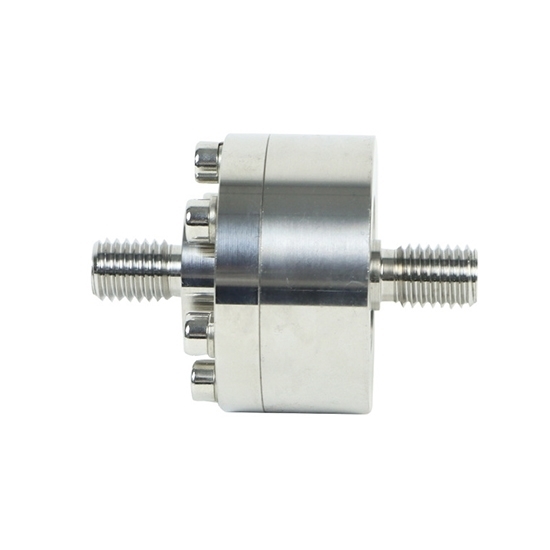

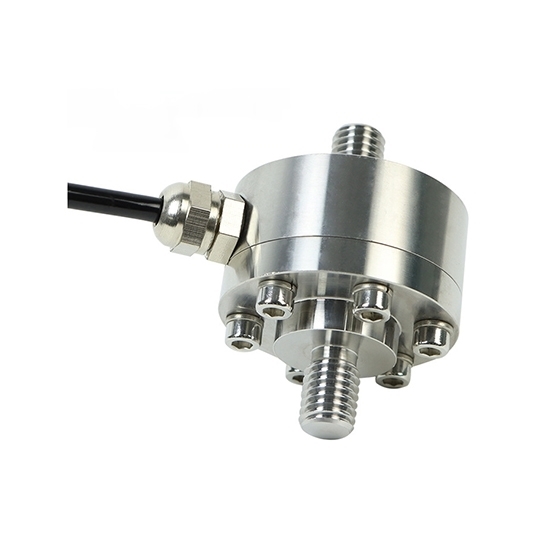

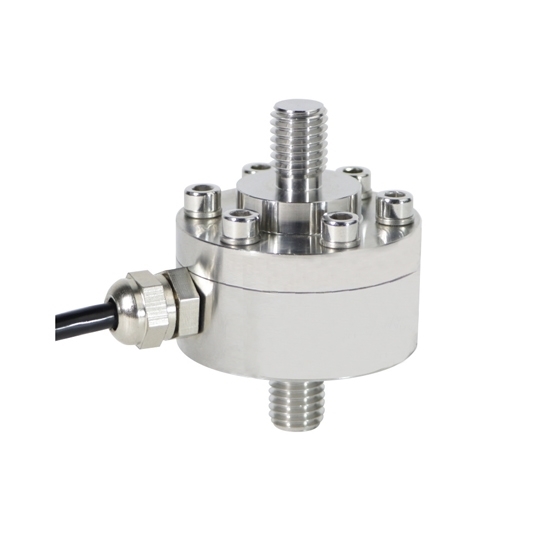

Reliable and durable threaded inline tension and compression load cell. It can be selected from 0.5KN/1KN/2KN/3KN/5KN/10KN/20KN and is available at an affordable price. With a rated output of 1.5-2.0mV/V and a zero balance of ±2% F.S., this load cell ensures high accuracy and performance. The tensile and compression load cell can be used in a variety of fields such as automotive press fitting, automated assembly, 3C product testing, medical testing, and other applications.

Specification

Model	RDDLZ-DYMH-107
Capacity	0.5KN/1KN/2KN/3KN/5KN/10KN/20KN (optional)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Rated Output	1.5-2.0mV/V
Zero Balance	±2%F.S.
Non-Linearity	0.5%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.5%F.S.
Creep	0.05%F.S. (30min)
Temp Effect on Output	0.05%F.S./10°C
Temp Effect on Zero	0.05%F.S./10°C
Response Frequency	10kHz
Material	Stainless steel
Impedance	350/700Ω
Insulation	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temp Range	-20°C~65°C
Safe Overload	1.5
Maximum Overload	2
Cable Specifications	φ5*2m
Cable Ultimate Pull	10kg

Dimension (unit: mm)

Wiring Diagram

Force Diagram

Application

Tips: How to ensure the measurement accuracy of the tension and compression load cell?

In order to ensure the accuracy of the tension and compression load cell, it is necessary to pay attention to the following points:

Correct Installation: Avoid additional stress interference and ensure that the load cell is subjected to uniform forces.
Periodic Calibration: Use standard weights or calibration equipment for periodic calibration.
Environmental Control: Avoid temperature changes, excessive humidity or electromagnetic interference affecting sensor performance.
Reasonable Range of Use: To avoid overloading or excessive impact force, so as not to affect the life and accuracy of the load cell sensor.
