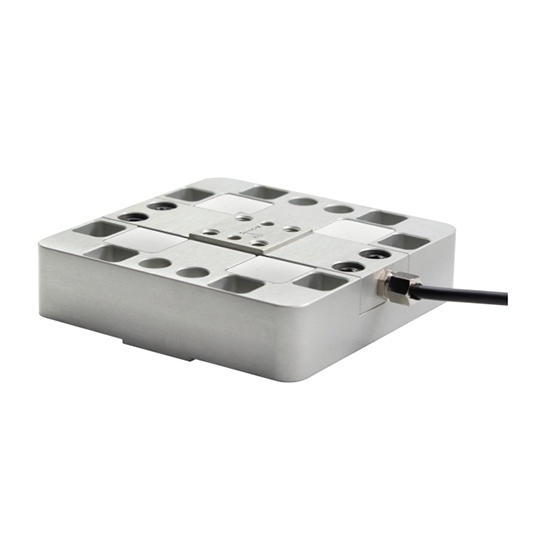

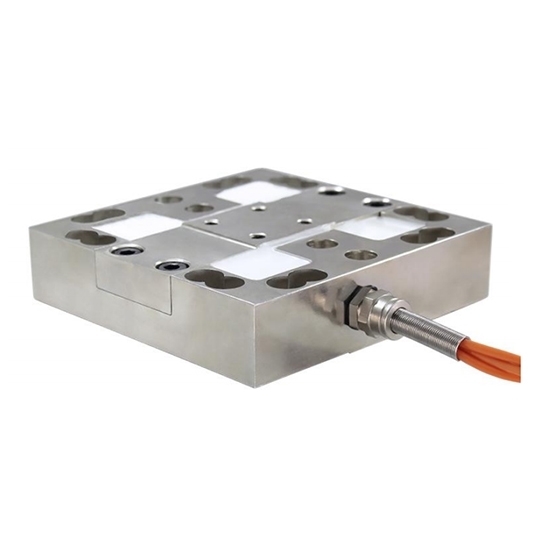

3 Axis Load Cell 50N/100N/200N/500N/1000N/2000N To 5000N

0 reviews • Write a review

from

$1,337.57

Ex Tax: $1,337.57

Stock: In Stock
Model: RDDLZ-LC-MA02
Weight: 1.00
SKU: RDDLZ-LC-MA02

Available Options

Capacity

Display Controller

With Transmitter (3PCS)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

3 axis load cells have capacity range from 50N, 100N, 200N, 500N, 1000N, 2000N to 5000N. Load cell capacity can be customized according to customer requirements, such as capacity of 500kg or 5000lb.

Specification

Model	RDDLZ-LCMA-DYDW-005
Shipping weight	3kg
Capacity range *	X axis: 5N~5000N Y axis: 5N~5000N Z axis: 5N~5000N

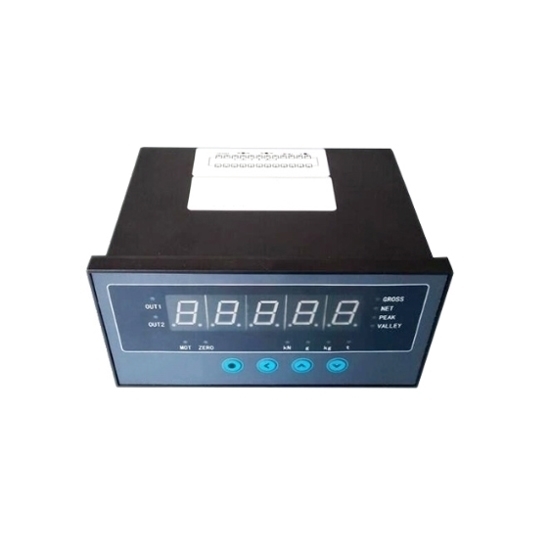

Matched display controller	RDDLZ-DDC5-CHB (One 3-axis load cell needs to be paired with 3 display controllers) (Click it to the controller page)

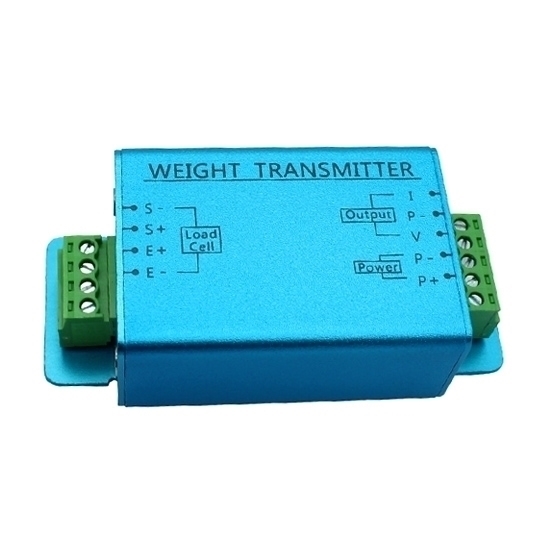

Matched transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.0mV/V
Creep	±0.5%F.S/30min
Zero output	±2%F.S
Temperature effect on zero	±0.05%F.S/10℃
Temperature effect on output	±0.05%F.S/10℃
Operating temperature	-20℃~+75℃
Input impedance	350Ω or 1000Ω
Output impedance	350Ω or 1000Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 5-15V
Material	Alloy steel
Protection class	IP66
Cable length	4m (Φ6mm)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

High Precision & Sensitivity: Provides high precision measurements with excellent stability and resistance to offset loads, ensuring reliable performance in various applications.
XYZ Axial Force Detection: Capable of measuring force in all three axes (X, Y, Z) simultaneously, delivering comprehensive force data for complex applications.
Durable Construction: Made with high-quality alloy steel, providing superior durability and resistance to environmental factors, suitable for harsh conditions.
Wide Application Range: Ideal for robotic arm force sensing, automated tool protection, test bench applications, and various industrial control systems.
Effective Sealing: Features effective sealing technology to protect internal components, ensuring stable performance in dusty and humid environments.

Dimension (unit: mm)

For 50N-500N

For 1000N-5000N

Wiring Method

Application

Tips: What is a 3 Axis Load Cell?

A 3 Axis Load Cell is a type of force sensor designed to measure forces applied in three perpendicular directions: X, Y, and Z axes. Unlike traditional load cells that measure force in a single direction (usually compression), a 3 Axis Load Cell can simultaneously measure force in all three spatial directions. This makes it ideal for applications where forces act in multiple directions, providing a comprehensive measurement of force distribution.

Typically, it uses strain gauges mounted on a central sensing element. When force is applied, the strain gauges detect the deformation along each axis and convert it into an electrical signal. This data is then processed to determine the magnitude of the applied force in each direction.
