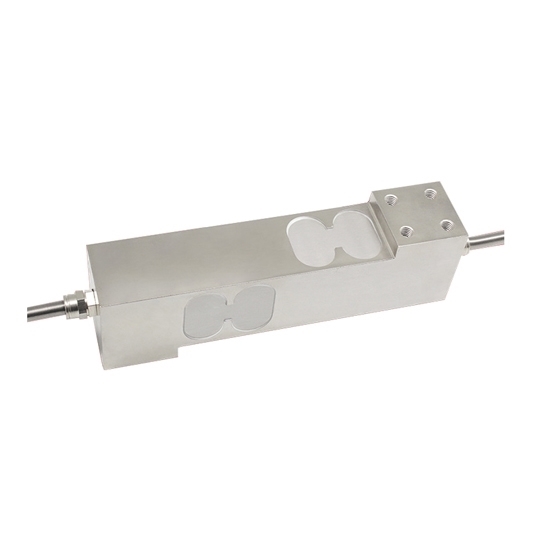

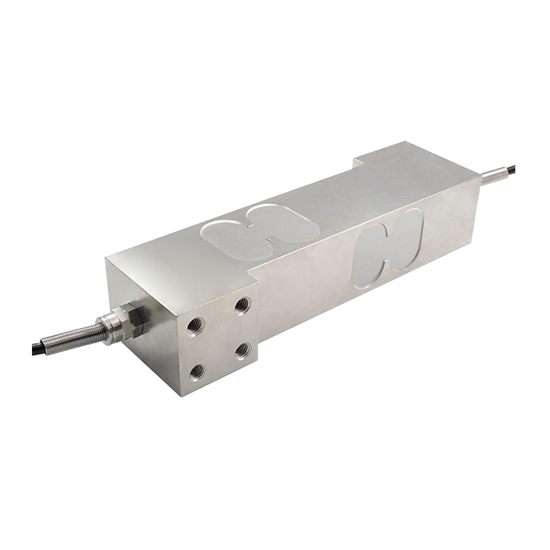

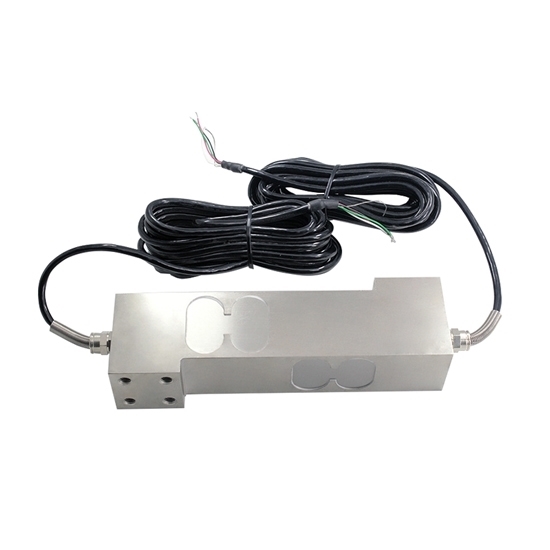

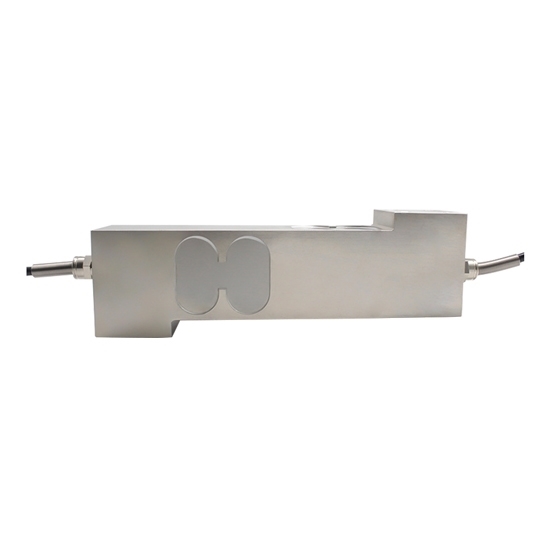

2 Axis Load Cell, 50kg/100kg/200kg/500kg To 1000kg

0 reviews • Write a review

from

$438.57

Ex Tax: $438.57

Stock: In Stock
Model: RDDLZ-LC-MA2A
Weight: 1.00
SKU: RDDLZ-LC-MA2A

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

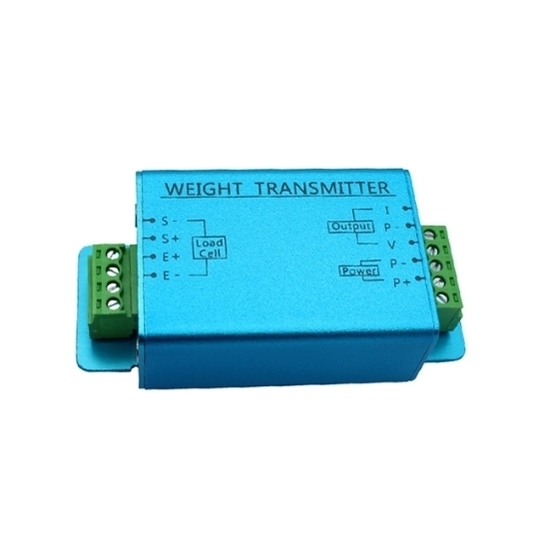

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

The 2-axis load cell sensor is suitable for measuring bi-directional forces and offers accurate load ranges from 50kg, 100kg load cells to 1000kg. Its high sensitivity and stability make it ideal for industrial applications such as production monitoring and materials testing. Reliable performance and durability for a wide range of environments. Simple installation for accurate bi-directional load measurements to meet engineering and experimental requirements.

Specification

Model	RDDLZ-DYDW-001
Capacity	50kg/100kg/200kg/500kg/1000kg (optional)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Material	Alloy steel
Sensitivity	1.0mV/V
Non-linearity	0.1%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep	0.1%F.S./30min
Zero Output	±2%F.S.
Zero Temperature Coefficient	0.05%F.S./10℃
Sensitivity Temperature Coefficient	0.5%Load/℃
Operating Temperature Range	-20℃～75℃
Impedance	350Ω
Response Frequency	10kHz
Safety Overload	150%
Insulation Resistance	≥5000MΩ/100VDC
Recommended Excitation Voltage	5-15V
Cable Size	φ5*4m
TEDS	optional extras

2 Axis Load Cell Dimension (unit: mm):

Force Direction Range
X	50kg	100kg	200kg	500kg	1000kg
Y	50kg	100kg	200kg	500kg	1000kg

Feature

Highly stable and can be installed in tight spaces.
Suspended beam sensor, high precision processing elastomer.
Non-standard customization, anti-interference signal stability, high quality aluminum alloy.
Widely used in automotive press fitting, automation assembly, 3C product testing, new energy product assembly, medical testing, robotics field, mold assembly and other industrial testing, automation equipment and testing field.

Application

Tips: How to Maintain 2 Axis Load Cell?

Regular Cleaning: Clean the surface of the 2 axis load cell with a clean, soft cloth to ensure that no dust or impurities affect the accuracy of the measurement.
Waterproof Protection: Ensure that the load cell is kept in a dry environment to avoid moisture intrusion. A waterproof sleeve or cover can be used for added protection.
Avoid Overloading: Avoid applying weight to the 2 axis load cell sensor that exceeds its rated load range to prevent damage to the cell.
Periodic Calibration: Perform periodic calibration to ensure accuracy and reliability of measurement results.
Prevent Vibration and Shock: Avoid severe vibration or shock during use to prevent loosening or damage to the internal parts of the load cell weight sensor.
