After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

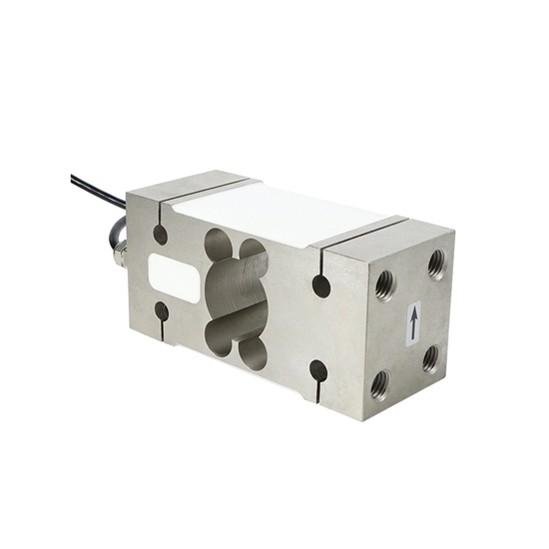

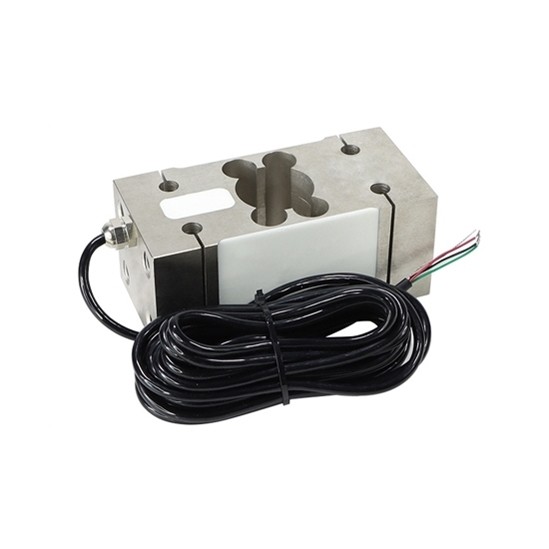

The bending beam load cell comes in capacities from 150kg to 2000kg. The load cell has a creep of 0.03%F.S. over 30 minutes and a temperature effect on output of 0.03%F.S./10°C, while the temperature effect on zero is 0.05%F.S./10°C. It operates with a frequency response of 10kHz and is made from durable alloy steel, with an impedance of 350Ω. Ideal for large-scale testing machines, batching scales, and belt scales.

Specification

Feature

• High Precision: The bending beam load cell is known for its high accuracy and long-term stability.
• Durable Construction: Made from high-quality alloy steel, it offers high strength and resilience, making it suitable for heavy-duty applications.
• IP67 Protection: The load cell features IP67 protection, ensuring it is resistant to dust and water, making it suitable for harsh industrial environments.
• Wide Application Range: This load cell is used in various fields, including large-scale testing machines, batching scales, belt scales, and more, thanks to its versatility.
• Temperature Stability: The bending load cell performs well under different temperatures, with a minimal temperature effect on both output and zero, ensuring stable measurements even in challenging conditions.
• Strong Resistance to Impact: Designed to withstand impact and vibrations, the bending beam load cell is reliable for use in environments with frequent mechanical stresses.
• Easy Installation: The load cell is designed for easy installation and setup, offering convenient integration into various measurement systems.
• Long-Term Stability: Its stable structure ensures consistent performance under varying loads, providing high accuracy and reliability for long-term use.
• Soldered Core: The internal core is treated with resin to ensure stability and prevent the effects of moisture and dust.

Dimension (unit: mm)

Application

Tips: What is the working principle of a bending beam load cell?

A bending beam load cell operates based on the principle of strain gauges, which measure the deformation (strain) of the beam under applied force. The load cell consists of a metal beam that bends when a load is applied. This bending causes a change in the electrical resistance of the strain gauges attached to the beam. As the beam deforms, the strain gauges experience a change in resistance that is proportional to the amount of strain (and thus the applied load). This change in resistance is then converted into an electrical signal, which is processed and calibrated to determine the weight or force applied. The bending beam load cell is commonly used in weighing scales and force measurement applications due to its simple design and high accuracy.
