142 Mm Strain Wave Harmonic Drive Gearbox, Ratio 50~120

0 reviews • Write a review

from

$604.62

Ex Tax: $604.62

Stock: In Stock
Model: RDDLZ-HD-142
Weight: 1.00
SKU: RDDLZ-HD-142

Available Options

Short Description

Gear Ratio

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

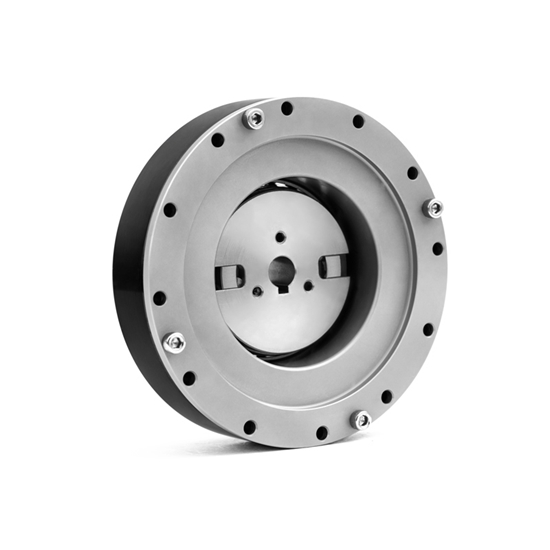

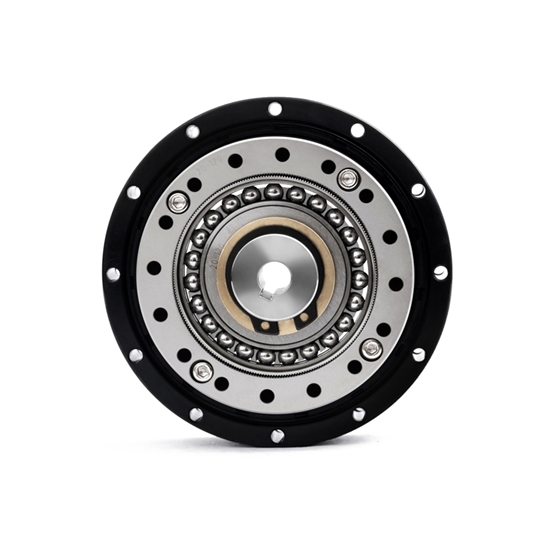

Get a harmonic drive gearbox at low cost. It is available with 50, 80, 100 and 120 gear ratios. 142 mm harmonic reducer provides high transmission accuracy and supports a high reduction ratio with low inertia, which is the best solution for industrial robots.

Features

It is a strain wave harmonic drive gearbox that can automatically adjust the center of the wave generator, which is convenient to use.
Compact harmonic reducer is available with a high torque capacity and 50~120 high gear ratio.
142 mm strain wave gearbox is designed for robots.

Specifications

Model: RDDLZ-SHF-32-I
Type: Self-aligning
Diameter: 142 mm
Thickness: 44 mm
Gear type: Cylindrical gear reducer
Installation form: Horizontal
Input speed: 3500 rpm
Rated power: 0.1 kW
Output speed: 0~500 rpm
Available torque: 1~100 N.m
Gear ratio: 50, 80, 100, 120, other gear ratios please contact us.

Parameters

Gear ratio	50	80	100	120
Rated torque when input 2000r/min (N.m)	72	112	130	130
Allowable peak torque at start and stop (N.m)	205	289	325	335
Maximum allowable average load torque (N.m)	103	159	208	208
Momentary allowable maximum torque (N.m)	363	540	635	652
Allowable maximum input speed (r/min)	5500
Allowable average input speed (r/min)	3500
Arc seconds	≤20	≤10	≤10	≤10

Dimensions (unit: mm)

Harmonic Drive Gearbox Applications

RDDLZ harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.

Tips: Harmonic Reducer vs. RV Reducer

The harmonic reducer is used for industrial robots with small loads or the last few axes of large robots. Harmonic reducer is a kind of harmonic transmission device, which includes a harmonic accelerator and harmonic reducer. Harmonic reducers mainly include rigid wheels, flexible wheels, bearings and wave generators. Among them, the number of teeth of the rigid spline is slightly larger than that of the flexible spline. The harmonic reducer is used in small robots because of its small size, lightweight, large carrying capacity, high motion accuracy, and large single-stage transmission ratio.

The RV reducer is used for the three joints of the leg, waist and elbow of the robot with a large torque, and the three axes of the industrial robot with a large load use RV. Compared with the harmonic reducer, the key of the RV reducer lies in the processing technology and assembly process. RV reducer has higher fatigue strength, rigidity and life.
