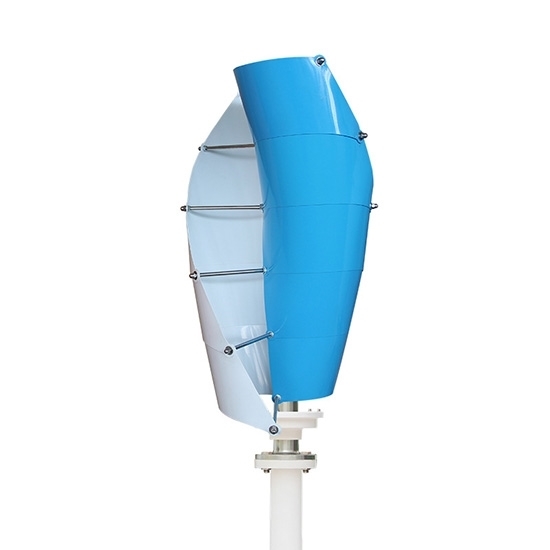

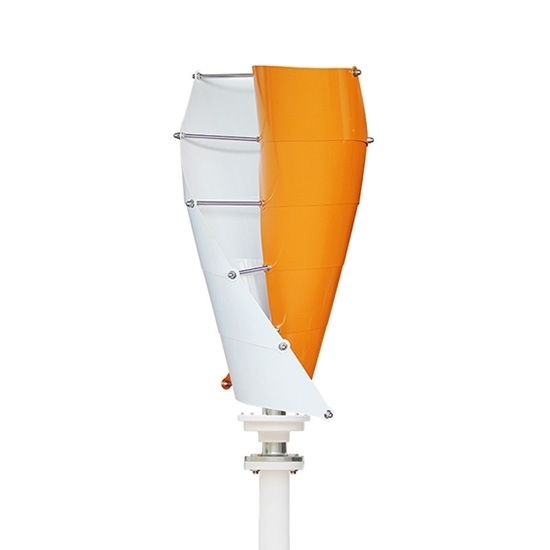

300W Spiral Wind Turbine, 12V/24V

0 reviews • Write a review

from

$797.46

Ex Tax: $797.46

Stock: In Stock
Model: RDDLZ-SWT-300X
Weight: 1.00
SKU: RDDLZ-SWT-300X

Available Options

Short Description

Rated Voltage

With Matched Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The starting wind speed of this spiral wind turbine is only 1.3m/s, and it can quickly start and start generating electricity in light wind conditions. Survival wind speed is up to 45m/s, and it is still stable and reliable in extreme weather conditions.

Features

Spiral wind turbine has a low starting wind speed and high wind energy utilization rate.
It has a beautiful appearance, low operating vibration and low noise.
Its installation design is very user-friendly, and it is easy to install, maintain and repair.
The wind turbine blades are precision-molded using a new process, with optimized aerodynamic profile and structural design, high wind energy utilization rate, which contributes to annual power generation.
The spiral vertical wind turbine uses a permanent magnet rotor generator, and its special stator design effectively reduces the generator resistance torque.

Specification

Model	RDDLZ-FY-300X
Rated power	300W
Max power	310W
Rated voltage	12/24V
Start-up wind speed	1.3m/s
Rated wind speed	11m/s
Survival wind speed	45m/s
Top net weight	14.5kg
Wind wheel diameter	0.48m
Blades height	0.8m
Number of blades	10
Blades material	Casting aluminum alloy
Generator type	Maglev generators
Control system	Electromagnet
Speed regulation	Automatically adjust windward direction
Lubrication way	Lubrication grease
Working temperature	-40℃~80℃
Matched controller model	RDDLZ-WTCMPPT-300

Dimension (mm)

Details

Tips: Installation and maintenance of spiral wind turbines

The installation of spiral wind turbines is relatively simple, especially for home or small applications. Compared with large wind turbines, spiral wind turbines are smaller in size and are very convenient to install on roofs or outdoor spaces. Due to their compact structure and strong wind resistance, the maintenance requirements after installation are low and the equipment has high operating stability. In terms of maintenance, the main thing is to regularly check the working status of the blades and generator to ensure that there is no dust accumulation or corrosion that affects the performance of the equipment. Due to the use of magnetic levitation technology, the wind turbine has relatively little wear and tear, which also reduces long-term maintenance costs.
