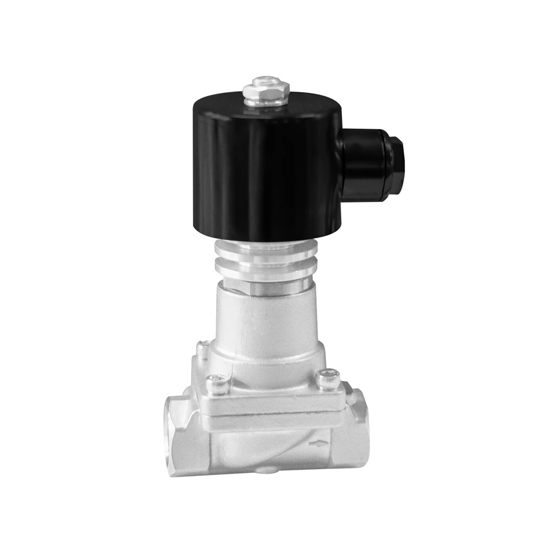

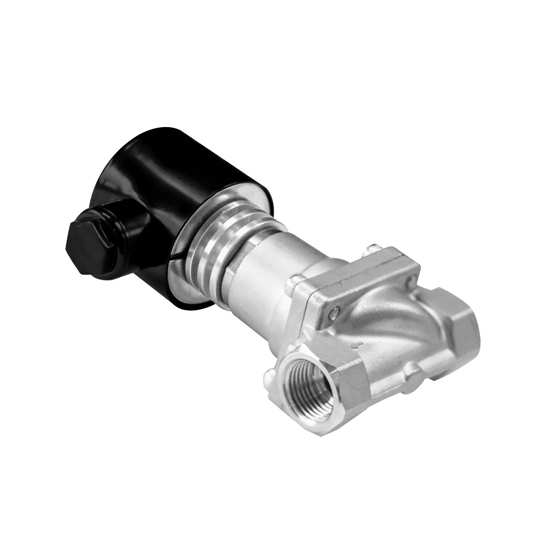

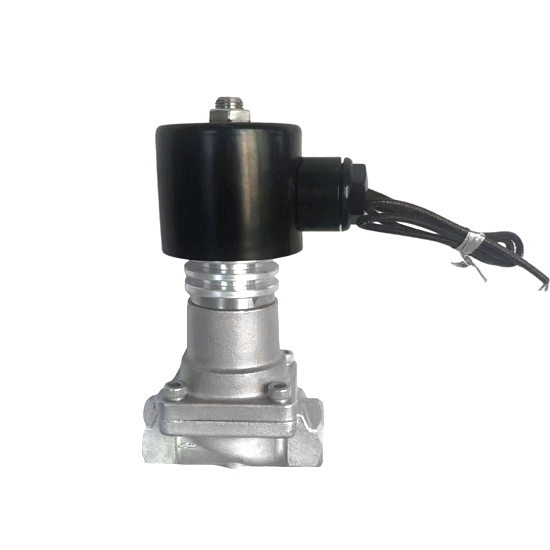

Steam Solenoid Valve, NPT, Stainless Steel, AC 110V/220V/240V

0 reviews • Write a review

from

$312.76

Ex Tax: $312.76

Stock: In Stock
Model: RDDLZ-SSV-HK10SA
Weight: 1.00
SKU: RDDLZ-SSV-HK10SA

Available Options

Voltage

Port Size

Fluid Temperature

Valve Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-temperature steam solenoid valve adopts a pilot piston structure, which has low power consumption characteristics and is particularly suitable for use in long-term operating pipeline systems. Its seals are designed specifically for steam environments and have a long service life, ensuring stable and reliable operation even under high temperature conditions.

Specification

Model		RDDLZ-HK10S-12	RDDLZ-HK10S-15	RDDLZ-HK10S-20	RDDLZ-HK10S-25	RDDLZ-HK10S-32	RDDLZ-HK10S-40	RDDLZ-HK10S-50
Port Size		3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)		12	15	20	25	32	40	50
Cv		4.5	4.5	9.3	12	24	29	48
Min Pressure		0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa
Max Pressure (AC 28VA)		1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Max Pressure (DC 22W)		1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Medium		Steam, hot water, oil, etc
Fluid Temperature		PEEK (-20℃~300℃), PTFE (-20℃~180℃)
Port Thread		NPT
Voltage		AC 110V/60Hz, 220V/50Hz, 240V/60Hz
Tolerance		±10%
Coils		Y21H, 28VA (AC), 22W (DC), IP65, 100%ED				Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
Material	Body	Stainless steel
	Seal	PEEK, PTFE
	Armature tube	Stainless steel 304
	Moving iron core	Stainless steel 430F
	Static iron core	Stainless steel 430F
	Springs	Stainless steel 304
	Shading rings	Copper

Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

Dimension (mm)

Size	A	B	C
HK10S-12	73	48	179
HK10S-15	73	48	176
HK10S-20	83	60	189.5
HK10S-25	100	72	189.5
HK10S-32	130	96	214
HK10S-40	130	96	214
HK10S-50	155	122	228

Tips: Applications of high temperature steam solenoid valve

High-temperature steam solenoid valves precisely regulate the flow and direction of steam, ensuring system stability and efficiency.
These solenoid valves are used in automated control systems to facilitate automatic switching operations, reducing manual intervention and increasing the automation level of production lines.
In steam systems, high-temperature solenoid valves effectively control pressure and temperature, preventing overpressure or overheating, thus protecting equipment and personnel.
By accurately controlling steam flow, high-temperature solenoid valves help optimize energy usage, reduce energy waste, and improve overall system efficiency.
Commonly used in boilers, heaters, and other steam heating equipment to regulate steam supply and achieve precise temperature and pressure control.
