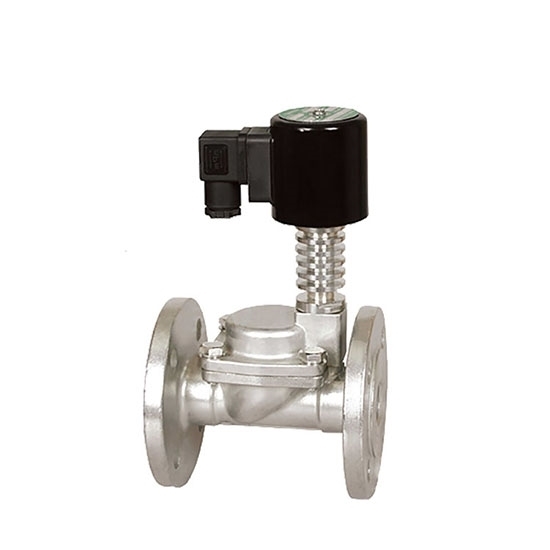

Steam Solenoid Valve, Flanged, Stainless Steel, AC 110V/220V/240V

0 reviews • Write a review

from

$528.76

Ex Tax: $528.76

Stock: In Stock
Model: RDDLZ-SSV-HK10FSA
Weight: 1.00
SKU: RDDLZ-SSV-HK10FSA

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-temperature steam solenoid valve is designed to control media such as steam, hot water, and oil, and is suitable for high-temperature environments. Steam solenoid valve supports two working modes: normally open (NO) and normally closed (NC), providing flexible control options.

Specification

Model		RDDLZ-HK10FS-25	RDDLZ-HK10FS-32	RDDLZ-HK10FS-40	RDDLZ-HK10FS-50
Port Size		1"	1-1/4"	1-1/2"	2"
Orifice (mm)		25	32	40	50
Cv		12	24	29	48
Min Pressure		0.05MPa	0.05MPa	0.05MPa	0.05MPa
Max Pressure (AC 28VA)		1.6MPa	1.6MPa	1.6MPa	1.6MPa
Max Pressure (DC 22W)		1.6MPa	1.6MPa	1.6MPa	1.6MPa
Medium		Steam, hot water, oil, etc
Fluid Temperature		PEEK (-20℃~300℃), PTFE (-20℃~180℃)
Port Thread		Flanged
Voltage		AC 110V/60Hz, 220V/50Hz, 240V/60Hz
Tolerance		±10%
Coils		Y21H, 28VA (AC), 22W (DC), IP65, 100%ED	Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
Material	Body	Stainless steel
	Seal	PEEK, PTFE
	Armature tube	Stainless steel 304
	Moving iron core	Stainless steel 430F
	Static iron core	Stainless steel 430F
	Springs	Stainless steel 304
	Shading rings	Copper

Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

Dimension (mm)

Size	A	B	C	D
HK10FS-25	130	⌀115	85	⌀65
HK10FS-32	160	⌀140	100	⌀78
HK10FS-40	160	⌀150	110	⌀85
HK10FS-50	190	⌀165	125	⌀100

Tips: What is the flanged connection?

Flanged connection is a method used to join pipes or equipment in a piping system by fastening two flanged surfaces together. It involves two circular metal plates, each with bolt holes, which are clamped together with bolts. A gasket is often used between the flanges to prevent leaks. This connection method is commonly used in systems where frequent disassembly or maintenance is required, such as in steam, liquid, and gas pipelines, because it provides a reliable seal and allows for easy disconnection and reassembly.
