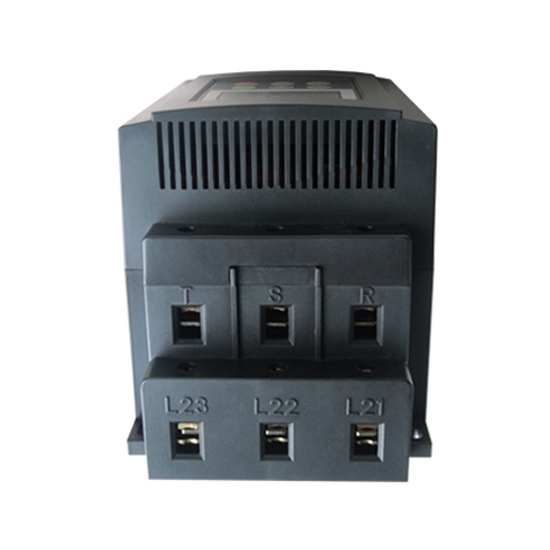

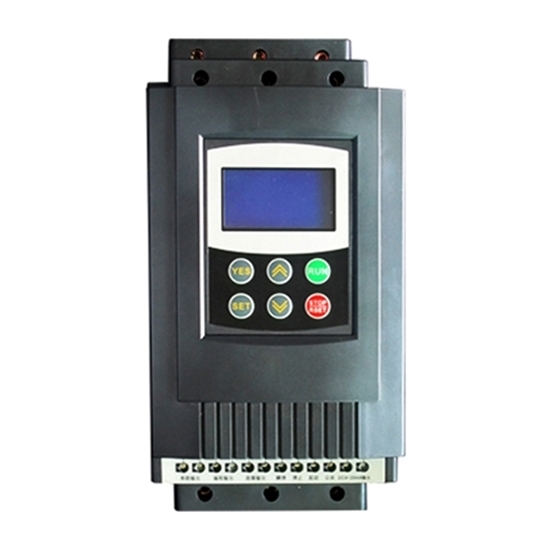

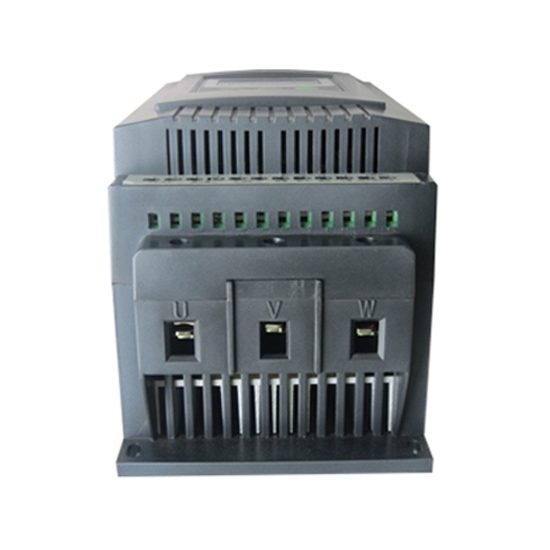

40 Hp (30 KW) Soft Starter, 60 A, 3ph 220v/380v/480v

0 reviews • Write a review

from

$449.20

Ex Tax: $449.20

Stock: In Stock
Model: GS-030
Weight: 1.00
SKU: GS-030

Available Options

Communication Interface

Input Voltage (Three Phase) ±15%

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40 hp soft starter, 30 kW three phase 220v, 380v, 480v, 690v AC motor starter, manufacturer direct sale.

Model			GS2-030 (220v, 240v), GS3-030 (380v, 400v, 415v), GS4-030 (460v, 480v), GS6-030 (575v, 690v).
Capacity			40 hp (30 kw)
Current			60 amps at 380v/480v, 110 amps at 220v, 37 amps at 690v
Weight			5 kgs
Dimension			270146160 mm
Input	Voltage		Three-phase 240v, 420v, 480v, 660v AC
	Frequency		50Hz/ 60Hz
Adaptive Motor			Squirrel-cage three-phase asynchronous motor
Starting Times			It is recommended not to exceed 20 times per hour.
485 Communication			DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
Control Mode			Operation panel control. Operation panel + external control. External control. External control + COM control. Operation panel + external + COM control. Operation panel + COM control. COM control. No start or stop operation.
Start Mode			Current-limiting to start. Voltage ramp to start. Torque control + current-limiting to start. Torque control + voltage ramp to start. Current ramp to start. Voltage current-limiting double closed-loop start.
Stop Mode			Soft stop. Free stop.
Protective Function			Open loop protection for external instantaneous stop terminals. Over-heat protection for soft starter. Protection for too long starting time. Input open phase protection. Output open phase protection. Unbalanced three-phase protection. Starting over current protection. Running overload protection. Under voltage protection for power voltage. Overvoltage protection for power voltage. Protection for fault parameter setting of the soft starter. Load short circuit protection. Auto restart or incorrect wiring protection. Incorrect wiring protection of external control stop terminals.
Ambient		Place to be used	Indoor location with good ventilation free from corrosive gas and conductive dust.
		Altitude	Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
		Temperature	-30 +55 ^oC
		Humidity	90%RH without dew condensation.
		Vibration	<0.5G
Structure		Enclosure	IP 20
		Cooling	Natural wind cooling.

Details

Tips: Soft starter principle
Soft-start is a motor starting mode. Compared to the hard start, in the motor soft-start process the voltage gradually increases to the rated voltage, the starting current gradually goes up to the rated current and then goes down. Soft-start makes the motor speed gradually increasing, and there is no impact torque phenomenon, motors always running smoothly and have no damage. The soft-start of the motor is achieved by a soft starter, which places the voltage regulator (typically a three-phase anti-parallel thyristor) between the power supply and the stator of the motor. The circuit is like a three-phase fully-controlled bridge rectifier circuit.
When the output voltage increases to the rated voltage, to achieve a smooth start, and gradually reduce the starting current, in order to avoid the motor trip phenomenon caused by too large starting current. When the speed increases to the rated speed, the motor's soft-start process ends, the soft starter automatically uses the bypass contactor to replace the thyristor to provide the voltage, making the motor has been rotating at constant speed invariably.
The soft starter not only can complete the motor soft-start, but also can complete the motor soft-stop. Soft starter soft-stop working principle is exactly opposite to soft-start working principle. It is mainly reducing output voltage gradually to reduce its speed until zero, and up to the motor stopping slowly.
