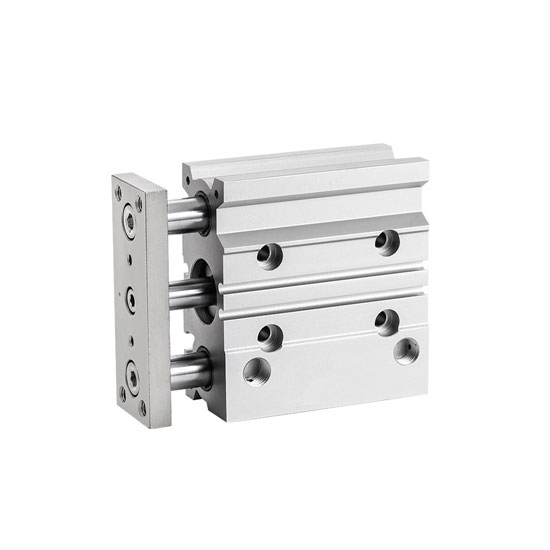

Small pneumatic cylinder easy to apply, save installation control, bore size 12mm (0.47 inch), stroke 40mm (1.5 inch) to 250 mm (9.8 inch), high load bearing, internal bumpers and magnetic piston are standard.

Specification

• Model: RDDLZ-PC-MGP
• Bore Size: 12mm
• Stroke: 250mm
• Use Fluid: Air
• Action Mode: Single rod double action
• Maximum Working Pressure: 1.0 MPa
• Minimum Working Pressure: 0.12 MPa (stroke 12mm, 16mm), 0.1 MPa (stroke 20mm, 100mm)
• Ambient & Fluid Temperature: -10~+70°C
• Buffer: Cushioning on both sides
• Stroke Length Tolerance: ₀^+1.0
• Use Piston Velocity: 50~500mm/s (stroke 12mm, 40mm), 50~300mm/s (stroke 50mm, 100mm)
• Certificate: CE

Features

• Guided pneumatic cylinders are available with a variety of fittings, throttle valves, air hoses, etc. according to your needs.
• Branded steel shaft is hard and wear-resistant, high strength, toughness and not easy to deformation.
• Double seal ring design, wear-resistant and not easy to leak air.
• Pneumatic slide cylinder adopts compound PTFE wear ring, improve cylinder guiding, reduce the wear of piston seal, and prolong the service life.
• Double acting pneumatic cylinder body is made of new aluminum alloy with CNC machining and hard oxidation treatment.

Guided pneumatic cylinder detail

Tips: The difference between pneumatic slide cylinder and rodless cylinder

Rodless cylinders are divided into two types: magnetic coupling type and mechanical type. The common feature of the sliding table cylinder and the rodless cylinder is that there is no piston rod. They both move through the piston inside the cylinder while driving the external platform, but the magnetic coupling type relies on magnetic force, while the mechanical type relies on steel belts. Pull on the platform. In fact, the rodless cylinder also has a sliding table, which can also be regarded as a sliding table cylinder. Generally speaking, the characteristics of the sliding table cylinder are: the piston is fixed on the piston rod, the plates at both ends of the piston rod can be fixed on the machine table, and the sliding table moves on the piston rod.
