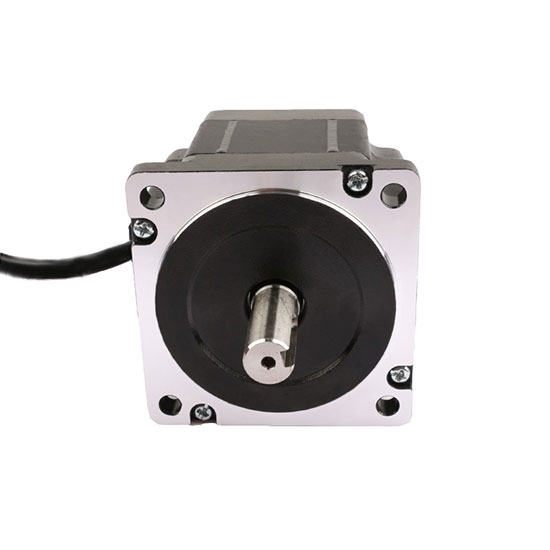

Nema 34 Stepper Motor, 1.1A, 1.2 Degree, 3 Phase 6 Wires

Nema 34 Stepper Motor, 1.1A, 1.2 Degree, 3 Phase 6 Wires
Nema 34 Stepper Motor, 1.1A, 1.2 Degree, 3 Phase 6 Wires
0 reviews • Write a review
from
$148.46
Ex Tax: $148.46
  • Stock: In Stock
  • Model: RDDLZ-STEP-30963411
  • Weight: 1.00
  • SKU: RDDLZ-STEP-30963411

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Nema 34 Stepper motor, 5.4Nm holding torque, 1.1A phase curent, 1.2° step angle, manufacturer direct sale.

Specification

BasicsModelRDDLZ3096-1106A
Matched Driver ModelRDDLZDSP32207(Click it to see more info)
Holding torque5.4Nm
Current/phase1.1A
Resistance10.3Ω
Step angle1.2°
Rotor inertia2200g.cm²
Weight2.8kg
Length96mm
Motor leads6
Technical parametersStep Angle Accuracy±5%(full step, no load)
Resistance Accuracy±10%
Inductance Accuracy±20%
Temperature Rise80℃ Max.(rated current, 2 phase on)
Ambient Temperature-10℃～+ 50℃
Insulation Resistance100MΩ Min 500V DC
Dielectric Strength500V AC for one minute
Shaft Radial Play0.06Max.(450g)
Shaft Axial Play0.08Max.(450g)

Dimensions

Motor Connection

Details

Tips: What is 2-phase stepper motor?

2-phase stepper motor is the most common stepper motor and also the choice with best performance ratio. Therefore, under the circumstance of no special requirements, it is necessary to give priority in choosing the 2-phase stepper motor. The 2-pahse stepper motors are mainly hybrid stepper motors. The smoothness of 2-phase stepper is not better than that of 3-phase and 5-phase stepper motor. However, the usage requirements of majority of users can be satisfied under the circumstance of subdivided drive. The stepping angle of 2-pahse hybrid stepping angle is generally 1.8° and 0.9°, first of which is common while 0.9° will be taken into account for the occasion of low-velocity rotation. As for 2-pahse hybrid stepper motor, there are also stepping angles namely 3.6° and 3.75°, which are not common. The stepping angle with large stepping angle is applicable for the occasion of high-velocity rotation, featuring relatively low noise.
The size range of common flange of 2-phase stepping motor is 20-110mm. Compared to the stepper motor with larger size of flange, 3-phase stepper motor is more advantageous. Meanwhile, compared to the stepper motor with smaller size of flange, PM stepper motor has obvious advantage over size and cost.
