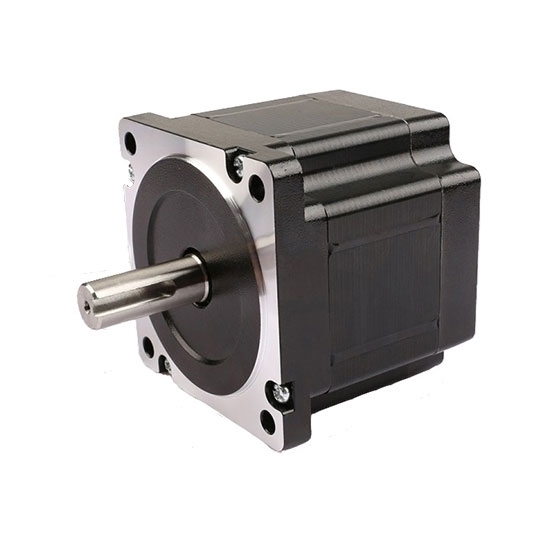

2-phase Nema 34 Stepper Motor, 1.8 Degree, 4.5A, 4 Wires

0 reviews • Write a review

from

$146.77

Ex Tax: $146.77

Stock: In Stock
Model: RDDLZ-STEP-21203445
Weight: 1.00
SKU: RDDLZ-STEP-21203445

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2-phase Nema 34 stepper motor, 4 wires bipolar stepper motor with 1.8°step angle (200 steps / revolution). Each phase draws current 4.5A, allowing for a holding torque of 8.4Nm, good quality and high precision.

Specifications

Basics	Model	RDDLZ2120-4504A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.8°
	Length	120mm
	Weight	4kg
	Current	4.5A
	Resistance	1Ω
	Holding Torque	8.4Nm
	Motor Leads	4
	Rotor Inertia	3200g-cm²
Technical Parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Motor Connection

Tips: How to select servo motor and stepper motor correctly?

It depends on specific application situation, and to put it in a simple way: Nature of load (for example, vertical load or horizontal load), requirements of torque, inertia, speed, accuracy and acceleration and deceleration, requirements of upper control (such as requirements of port interface and communication), whether major controlling mode is position, torque or speed mode, whether power supply is direct or alternating current power supply, or battery powered, and voltage scope. Based on this, we can determine models of motor and supporting drives or controllers.
