4-wire Nema 34 Stepper Motor, 3A, 1.8 Degree, 2 Phase

0 reviews • Write a review

from

$146.77

Ex Tax: $146.77

Stock: In Stock
Model: RDDLZ-STEP-21203403
Weight: 1.00
SKU: RDDLZ-STEP-21203403

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

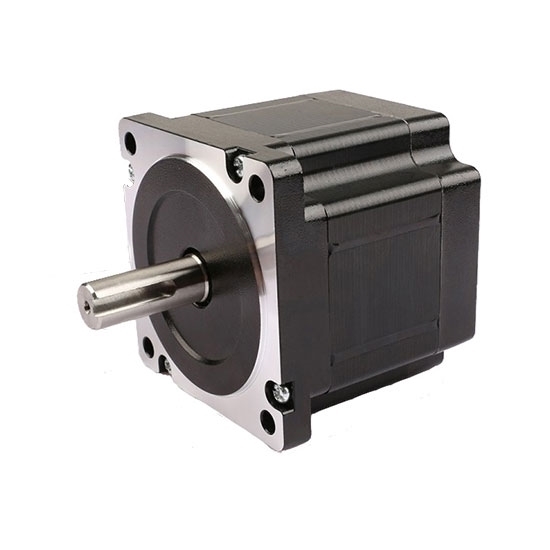

4-wire 2 phase bipolar Nema 34 stepper motor, specified to have a maximum current of 3A, resolution of 1.8 degree/step, torque of 8.4Nm.

Specifications

Basics	Model	RDDLZ2120-3004A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.8°
	Length	120mm
	Weight	4kg
	Current	3A
	Resistance	2.3Ω
	Holding Torque	8.4Nm
	Motor Leads	4
	Rotor Inertia	3200g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Motor Connection

Tips: The reasons why the stepping motor suddenly stops when it starts to run
If the stepper motor doesn’t rotate sometimes or motion back and forth on the spot when starting, it is generally necessary to give considerations into inspection of following aspects:

When selecting the motor, whether the computing of working torque is large enough and can drive the load. Therefore, we generally recommend users to select the motor whose torque should be larger than actual demands by 30%-50% of. For the stepper motor cannot rotate around overloading, no matter the moment, step out will be caused. If serious, the stalling or repeated and irregular motioning on the spot will be caused.
Whether the input stroke pulse of the upper controller is correct. Firstly, it is necessary to set 5V and 15mA to have optocoupler stably conducted, whether the frequency of input is high and it is filtered by optocoupler.
Whether the start frequency is too high and acceleration process is set on the start procedure. It is better to begin accelerating to the set rate from the start frequency regulated for the motor. No matter the acceleration time is very short, or it cannot be stable.
When the motor is not fixed, such situation may emerge sometimes, which belongs to the normal situation for the intense resonance of the motor is caused and it the stalling state is generated. Therefore, the motor should be fixed.
Whether there is lack of phase, if so, the motor will joggle and cannot rotate normally. As for 2-phase stepper motor, the motor also cannot work normally in case of wrong phase.
