High Torque Nema 34 Stepper Motor, 8A, 1.8 Degree, 4 Wires

0 reviews • Write a review

from

$185.38

Ex Tax: $185.38

Stock: In Stock
Model: RDDLZ-STEP-21603408
Weight: 1.00
SKU: RDDLZ-STEP-21603408

Available Options

Short Description

Input Pulse Voltage

With Matched Driver

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

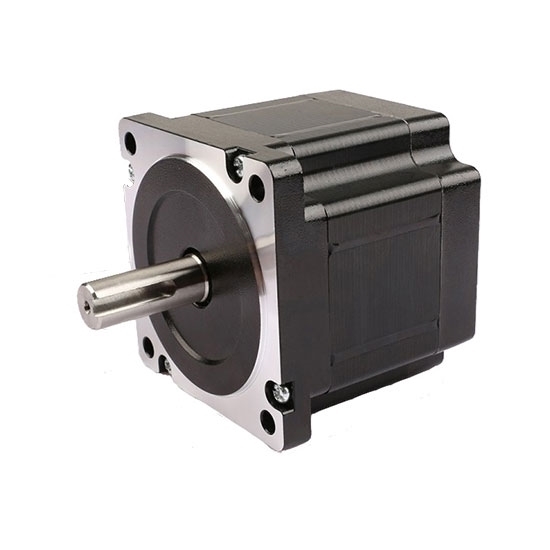

Great quality and favorable price Nema 34 2 phase stepper motor, 8A, 4-wire bipolar stepper motor which has 1.8 degree per step for smooth motion and a nice holding torque.

Specifications

Basics	Model	RDDLZ2160-8004A
	Matched the Driver Model	RDDLZDSP86 (Click it to see more info)
	Step Angle	1.8°
	Length	160mm
	Weight	5.5kg
	Current	8A
	Resistance	0.38Ω
	Holding Torque	12Nm
	Motor Leads	4
	Rotor Inertia	4800g-cm²
Technical parameters	Step Angle Accuracy	±5% (full step, no load)
	Resistance Accuracy	±10%
	Inductance Accuracy	±20%
	Temperature Rise	80℃Max. (rated current, 2 phase on)
	Ambient Temperature	-10℃~+50℃
	Insulation Resistance	100MΩ Min. 500VDC
	Dielectric Strength	1Min. 500VAC·5mA
	Shaft Radial Play	0.06Max. 450g
	Shaft Axial Play	0.08Max. 450g

Dimension

Motor Connection

Tips: What differences between large and small winding wiring methods of 2-phase unipolar stepper motor?

As for 2-phase unipolar stepper motor, there are 6 motor leads and outgoing lines. Such motor can be driven with unipolar or bipolar driver. When 4-line bipolar driver is used to drive 6-line bipolar unipolar stepper motor, there is great difference in wiring mode and the results will be different. 2-phase unipolar and bipolar stepper motors can be connected through large or small winding connection.
Large winding connection also indicates the series connection. It is generally applied into the occasions when the motor rotates at low velocity. The resistance with such connection is double times of single-phase resistance and inductance is 4 times of single-phase inductance and the rated current is 0.7 times of single-phase current of motor. At this time, holding torque is about 1.4 times of unipolar drive.
Small winding connection is generally applicable for occasions when the motor rotates at high velocity. The characteristic parameters of resistance, inductance and holding torque of the motor are the same as the characteristic of the unipolar drive motor.
