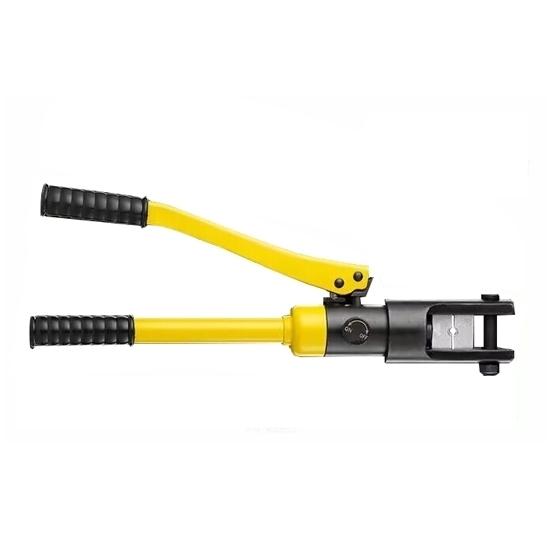

Hydraulic Crimping Tool, 10-120 Mm2, 7 Ton

0 reviews • Write a review

from

$173.84

Ex Tax: $173.84

Stock: In Stock
Model: RDDLZ-HCT-120A
Weight: 1.00
SKU: RDDLZ-HCT-120A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High efficiency hydraulic crimping tool provides 7 ton output power, 10-120mm² mold, 12mm strokes, and a crimping range of 10-120mm²copper terminals and 8-95mm² aluminum terminals, CE certification, manual operation, safe and reliable.

Specifications

Model	RDDLZ-HHY-120A
Output Power	7 ton
Crimp Range	10-120mm² (Copper Terminal) / 8-95mm² (Aluminum Terminal)

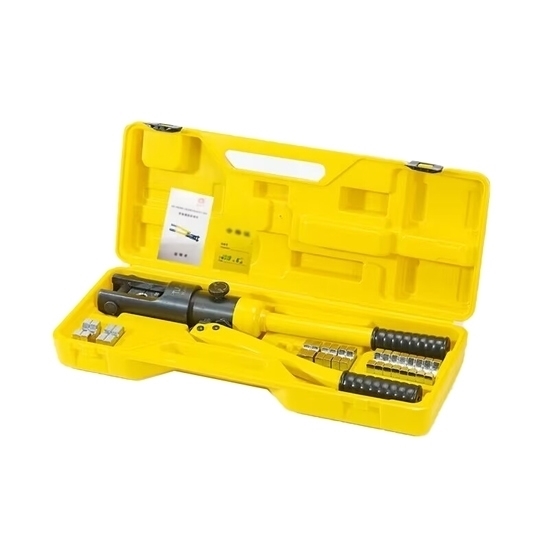

Equipped With Mold	10, 16, 25, 35, 50, 70, 95, 120
Stroke	12mm
Weight	4.5kg
Package Size	430x190x90mm

Dimension (Unit: mm)

Applications

RDDLZ manual hydraulic crimping tool is primarily used for crimping or compressing connectors onto wires or cables. It is commonly employed in various industries such as electrical, telecommunications, automotive, and plumbing. Crimping pliers are used to create secure and reliable electrical or mechanical connections by deforming the connector around the wire or cable, ensuring proper conductivity and structural integrity.

Tips: What are the different types of hydraulic crimping tools?

Handheld Hydraulic Crimping Tool: This is the most basic type of hydraulic crimping tool. It is handheld, compact, and operated manually. It usually has a pair of interchangeable crimping dies for different wire sizes.
Battery-Powered Hydraulic Crimping Tool: These crimping tools are powered by rechargeable batteries, offering greater convenience and portability compared to manual tools. They often have a hydraulic pump built into the tool and come with interchangeable crimping dies.
Remote Hydraulic Crimping Tool: Remote hydraulic crimping tools are designed for working in confined spaces or hard-to-reach areas. They have a separate hydraulic pump unit connected to the crimping head by a hydraulic hose, allowing the user to operate the tool remotely.
Hydraulic Crimping Press: Hydraulic crimping presses are heavy-duty tools used for high-volume crimping applications. They typically have a larger crimping capacity and are used in industrial settings, such as manufacturing or production lines.
Multi-Functional Hydraulic Crimping Tool: These tools offer versatility by combining crimping capabilities with additional functions, such as cutting, stripping, and punching. They are often used in electrical installations and maintenance work.
