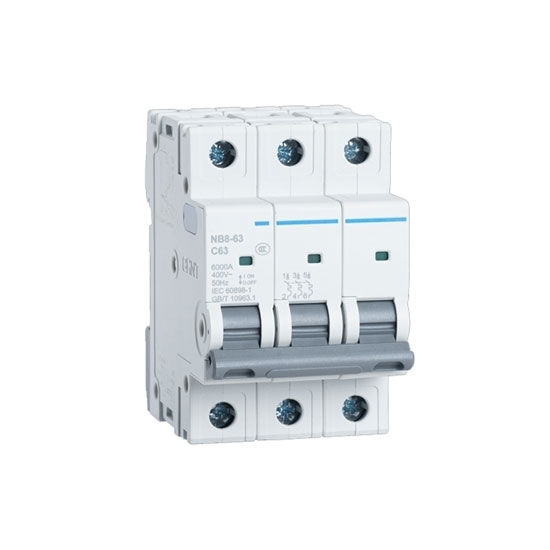

63 Amp 3 Pole Miniature Circuit Breaker

0 reviews • Write a review

from

$82.29

Ex Tax: $82.29

Stock: In Stock
Model: RDDLZ-MCB-3P63
Weight: 1.00
SKU: RDDLZ-MCB-3P63

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 Pole MCB Breaker Information

Rated Current: 63 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 3 pole
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		RDDLZ-NB8-633PC63
Rated Current		63A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		3P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

3 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: Difference between circuit breaker and contactor
Circuit breaker plays a protective role in extinguish arc and disconnecting circuit. Contactor refers that coil is used for the on-off control of circuit. When contactor is charged, the circuit that is normally connected will be cut off and the circuit that is normally closed will be connected.

Circuit breaker is mainly used for protection and its common protections include overload protection, short circuit short delay and short circuit delay. In addition, there are other protections that depend on brand and model, including under-voltage, over-voltage etc. Switch can be manually operated or electric-driven. Installation modes are various such as fixed installation and drawer etc. According to current and working voltage level, they can be divided into many types.
Contactor mostly used in the industrial control is mainly introduced into manufacturing television. Of course, it also can be used in heater and double power switch. The on-off control of contactor is achieved by controlling coil voltage. According to different arc structures, they can be divided into vacuum contactor and standard contactor. According to different control voltage, they can be categorized into direct current contactor and alternating current contactor and its main accessories are auxiliary contactor.
