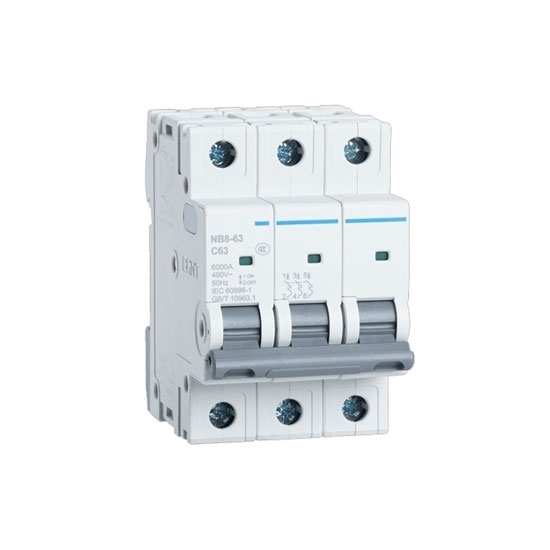

16 Amp 3 Pole Miniature Circuit Breaker

0 reviews • Write a review

from

$70.69

Ex Tax: $70.69

Stock: In Stock
Model: RDDLZ-MCB-3P16
Weight: 1.00
SKU: RDDLZ-MCB-3P16

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

C16 3 pole miniature circuit breaker (MCB) is used for safeguarding circuits across industrial, commercial, and residential applications. This 16 amp mini circuit breaker provides functions of short circuits and overloads and offers protection for individuals against indirect contact with electrical faults.

3 Pole MCB Breaker Information

Rated Current: 16 amp
Rated Voltage: 230/400V AC, 50Hz
Number of poles: 3 pole
6 kA rated short-circuit breaking capacity
Compliant with IEC standard
C curve trip characteristic
With overload protection and short circuit protection function

Technical Data

Model		RDDLZ-NB8-633PC16
Rated Current		16A
Rated Voltage		230/400V
Frequency		50Hz
Number of Poles		3P
Mechanical Life		20000 Times
Electrical Life		10000 Times
Rated Short-Circuit Breaking Capacity		6000A
Operating Short-Circuit Breaking Capacity		6000A
Rated Impulse Withstand Voltage (1.2/50)		6kV
Dielectric Test Voltage		2000V (50Hz, 1 min)
Heat & Humidity Resistance		28 Cycles
Vibration Resistance		No Obvious Vibration and Impact
Terminal Block	Terminal Block Type	Pillar Terminal Block
	Min. Terminal Size Acceptability	1mm²
	Max. Terminal Size Acceptability	25mm²
	Standard Connection Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Wire Insertion Depth	13mm
Reference Temperature		30℃
Operating Temperature		-35℃~+70℃
Storage Temperature		35℃~+85℃
Applicable Altitude		2000m
Tripping Mode		Thermal Magnetic Trip
Electromagnetic Tripping Type		Type C (5In-10In)
Shell Flame Retardant Grade		V0
Wire Entry Method		Both Upper and Lower
Installation Method		TH35-7.5 Standard Rail
Protection Level	Direct Installation	IP20B
	Installed in the Distribution Box	IP40B

3 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: Main function of miniature circuit breaker

The function of the mini circuit breaker is to quickly cut off the power supply circuit when the human body gets an electric shock or the equipment leaks, to prevent the human body and the equipment from being harmed.

The micro circuit breaker was once called the leakage protection circuit breaker, which is a kind of switching device to prevent the human body from getting electric shock or leakage in the low-voltage circuit and causing fire and explosion accidents. When the detection element receives the signal, the leakage release disconnects the main contact of the main circuit, which plays a protective role. The protective action current of the detection element and the leakage release is 30~100mA, and the protection action time is 0.03~0.1s.
