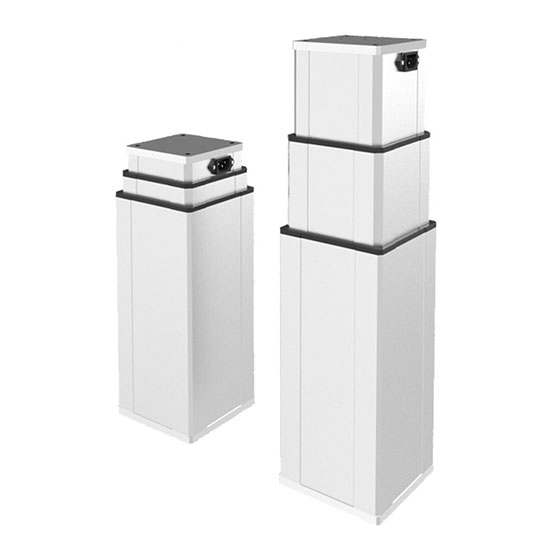

Tatami Electric Lifting Column, 12V/ 24VDC, 2000N

0 reviews • Write a review

from

$756.03

Ex Tax: $756.03

Stock: In Stock
Model: RDDLZ-LC-HTJC600-3S
Weight: 1.00
SKU: RDDLZ-LC-HTJC600-3S

Available Options

Short Description

Rated Voltage

Stroke

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The electric lifting column with 4 mm/ s max. speed at load 2000N, CE certificate. The 3-stage lifting coulumn is a very powerful and versatile control box and controller.

Specification

Model: RDDLZ-LC-HTJC600-3S
Rated voltage: 12V/ 24VDC
Rated speed: 4500 rpm
Maximum thrust: 2000N
Maximum pulling force: 500N
Maximum speed at full load: 4 mm/s (load 2000N)
IP rating: IP54
Operating temperature range: -25°C ~ +65°C
Certificate: CE

Lifting Column Load and Speed Selection

Rated Load Capacity		Self Locking Current (N)	Rated Load Current (A)	Output Speed at No Load (mm/ s)	Output Speed at Full Load (mm/ s)
Pull (N)	Push (N)	Self Locking Current (N)	Rated Load Current (A)	Output Speed at No Load (mm/ s)	Output Speed at Full Load (mm/ s)
2000	500	2000	2.4	8	7
1500	500	1500	2.4	16	13
1000	500	1000	2.4	30	24

Dimension (mm)

S: Stroke
L: Retracted length
L=stroke/ 2 + 150mm

Lifting Column Stroke and Size Selection

Stroke±2 (mm), Mounting Dimension±2 (mm)
Stroke	200	300	400	500	600	700	800	900	1000
Retracted length	250	300	350	400	450	500	550	600	650

Tips: Tatami Electric Lifting Column Troubleshooting.

The remote control does not work
There are generally two situations when the remote control does not work: First, the battery of the remote control is depleted, and the battery of the remote control needs to be replaced. Second, the remote control is broken or the antenna is loose.
The lifting column slides down
There are generally three solutions to this situation:
First, judge whether the lifting operation has not been carried out for more than 2 consecutive days? Is it normal after lifting operation? This reminds us that lifting and lowering operations should be performed once a day. Secondly, think about whether the remote control is operated by mistake? In this regard, it is necessary to check the remote control and operate the remote control correctly. Finally, if the lifting column still slides under normal operation, please contact us in time.
The lifting column does not rise or does not rise in place
There are several reasons for this situation: sundries around the column block the lifting column, improper operation of the remote control, tripping of the electric control box, etc. Solution: Clean up the debris, check the remote control, close the switch and try again.
