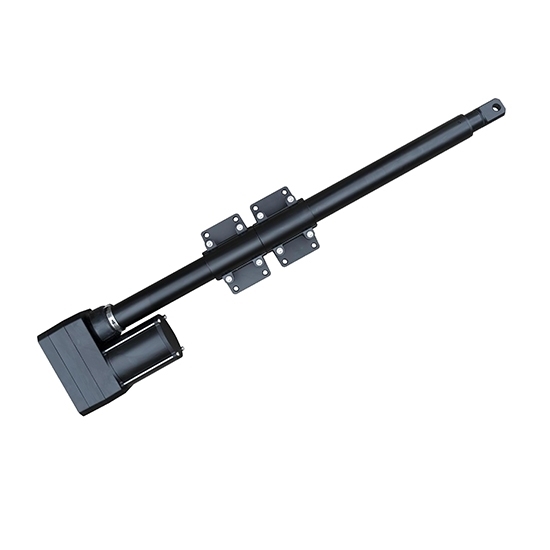

Farm Ventilation Linear Actuator, 5000N, 24V DC/120V AC

Farm Ventilation Linear Actuator, 5000N, 24V DC/120V AC
Farm Ventilation Linear Actuator, 5000N, 24V DC/120V AC
0 reviews • Write a review
from
$587.46
Ex Tax: $587.46
  • Stock: In Stock
  • Model: RDDLZ-LACTU-5000
  • Weight: 1.00
  • SKU: RDDLZ-LACTU-5000

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hot sale 5000N load capacity linear actuator with best price, available with 24V DC/ 36V DC/ 48V DC/ 120V AC/ 230V AC input voltages for optional ( 24V DC is the standard) and strokes are customizable. It features free adjustment of mounting, long service life and low power consumption, is widely used for farm ventilation system and breeding industry.

Parameter List

ModelRDDLZ-U12
Voltage24V DC, 36V DC, 48V DC, 120V AC, 230V AC (Optional)
Max. Load5000N
No-Load Speed4.5mm/s
Full-Load Speed4mm/s
Rated Speed5000RPM
Stroke50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, 50-1200mm can be customized)
Duty Cycle10%
IP GradeIP65
Ambient Temperature-40℃ ~ +65℃
InstallationBracket mounting, the installation size can be adjusted flexibly.
Potentiometer1K
Noise<60db
Length of Cable1.2m
Weight11kg
ApplicationsVentilation system for agricultural livestock breeding

Standard Dimension (mm)
