- Stock: In Stock
- Model: RDDLZ-BP-1P5HP
- Weight: 1.00
- SKU: RDDLZ-BP-1P5HP
1-1/2 HP (1.1 kW) water pressure booster pump is a combination of motor, pump, pressure tank, pressure switch, flow sensor switch and electronic controller for the integration of automatic water supply system. It widely used in house, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.
Specification
| Model | RDDLZ-40WZB-1100A | |
| Power | 1.5 HP (1.1 kW) | |
| Voltage (AC) | 220V-240V | |
| Frequency | 50Hz | |
| Phase | Single Phase | |
| Max. Flow | 84 L/min | |
| QMax | 4.3 - 4.5 m3/h | |
| Max. Head | 54m | |
| Max. Suction | 9m | |
| Inlet Diameter | 1-1/2 inch | |
| Outlet Diameter | 1-1/2 inch | |
| Pump | Max. Liquid Temperature | +0 ~ +80℃ |
| Liquid PH Valve | 6.5 - 8.5 | |
| Material | Cast Iron Body and Support | |
| Motor | Max. Ambient Temperature | +40℃ |
| Insulation Class | B or F | |
| Protection | IP x 4 | |
| Cooling | External Ventilation | |
| Shaft | Stainless Steel Welded Shaft/45# Steel Shaft | |
| Packing Dimension | 365mm * 270mm * 365mm | |
| Weight | 19.5kg | |

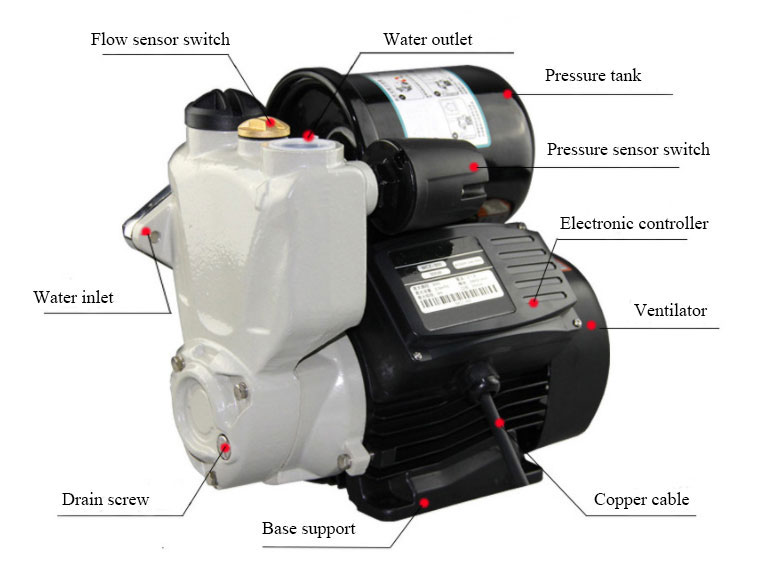

Details
Applications
Tips: What are the advantages of RDDLZ automatic water booster pump?
RDDLZ automatic water booster pump has rust-free copper inserts to prevent impeller's block when starting after the pump is unused for a long time.
It has long life span with small size, high efficiency and low power consumption.
Its noise less than 35dB, can be used for cold and hot water circulation.
The stator and circuit board of the motor are sealed with epoxy resin and completely isolated from the rotor, which solves the problem of water leakage caused by the motor type DC water booster pump for a long time. It is completely waterproof, which can be installed underwater.
