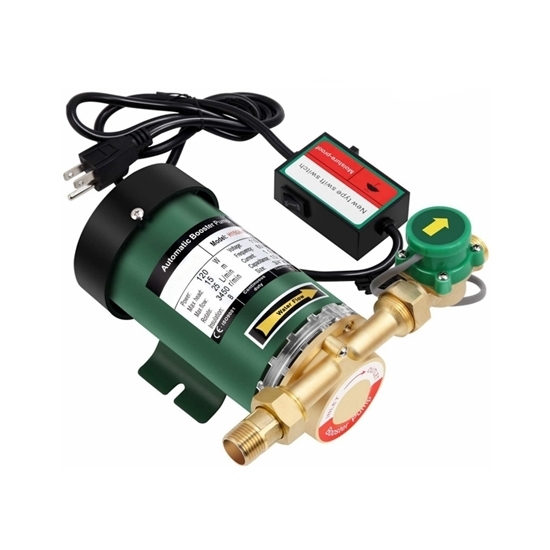

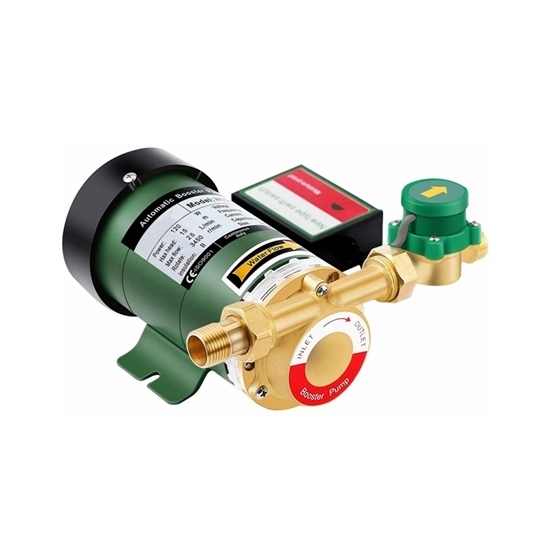

120W automatic water pressure booster pump can be used to increase the water pressure for home, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.

Specification

• Model: RDDLZ-PBZYB15GR-15
• Voltage (Optional): 110V 60Hz, 220-240V 50Hz, 220-240V 60Hz
• Power: 120W
• Max. Head: 15m (50ft.)
• Max. Flow Rate: 25L/min (5GPM)
• Speed: 2850rpm
• Outlet (Optional): 3/4 inch (19mm), 1 inch (25mm)
• Cable: 1m (3.28ft.)
• Body Material: Cast Copper
• Dimension: 24cm*17cm*14cm
• Weight: 4kg

Application

Tips: What are the types of automatic water pressure booster pump?

• Water-flow automatic booster pump: The water-flow automatic booster pump can easily and accurately sense when the user uses and does not use water through the water flow switch. Return to its original position, and the booster pump is powered off and stopped. This reciprocating cycle realizes automatic operation. Water flow booster pumps are widely used in water heater booster.
• Differential pressure booster pump: The differential pressure is based on the differential pressure. A differential pressure control switch can customize the starting pressure value and the stop pressure value. When the pressure is equal to the set starting pressure value, the control system will make the pump energized and run; otherwise, when the pressure rises to the set stop pressure value, the pump will be powered off by the control system and stop running.
• Liquid level booster pump: The liquid level control is based on the water level difference. The high water level stops to prevent water overflow, and the low water level starts to realize the water replenishment of the pool. The realization of the liquid level is achieved by controlling the distance between the balance weight of the liquid level switch and the switch float. The greater the distance, the greater the water level difference. Liquid level automatic booster pumps are generally used for drainage, high and low pool water replenishment, etc.
• Variable-frequency booster pump: The variable-frequency automatic booster pump works based on a certain fixed value. Once the control system finds that the actual pressure deviates from the set pressure value, the system immediately controls the pump to supplement the pressure. The speed of the pump is related to the speed of water use. The greater the change of water pressure, the greater the surface water consumption, and the system controls the pump to run quickly to achieve the purpose of supplementing the pressure. When the pressure value of the pipe network approaches the set pressure value, the system starts to control the pump to decelerate to run. When no water is used in the end, the system control sleeps and the water pump stops running. The reciprocating cycle can realize the constant pressure water supply of the variable frequency automatic booster pump.
