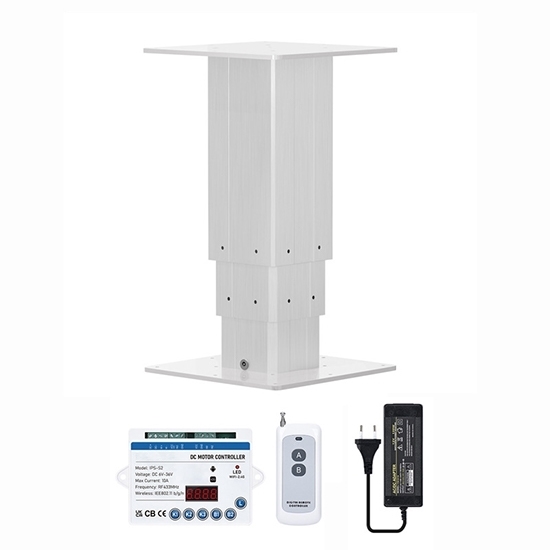

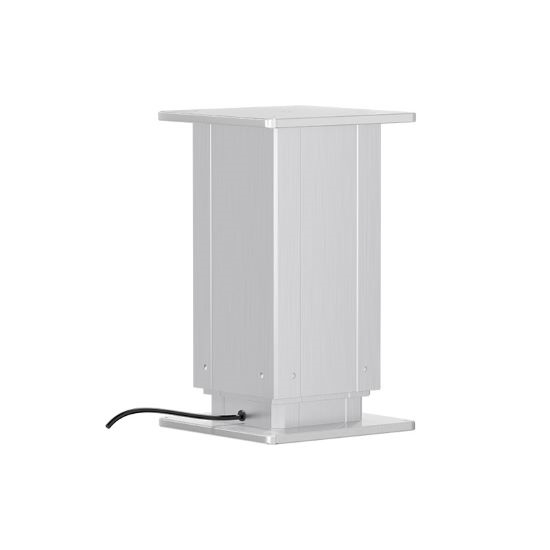

3-stage Electric Lifting Column, 24V, 80~120kg

0 reviews • Write a review

from

$455.54

Ex Tax: $455.54

Stock: In Stock
Model: RDDLZ-LC-HTA3
Weight: 1.00
SKU: RDDLZ-LC-HTA3

Available Options

Short Description

Control Method

Height

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory priced lifting column with load capacity of 80~120kg, no-load lifting speed of 4~8mm/s, working temperature of -15℃~+65℃, and low noise decibel of 30~40dB. The small column lift has the advantages of fast speed, low noise, rapid control, quiet and reliable, and economical benefits.

Specification

Model: RDDLZ-SRALEA/B
Rated voltage: 24VDC
Tube body: 3 stage
Maximum load capacity: 80kg/120kg
No-load lifting speed: 4~8mm/s
Stroke:275~430mm
Limit switch: Built-in limit (upper and lower ends)
Color: Silver White
Working temperature: -15°C ~ +65°C
Working frequency: 10%Work System, Maximum 1 Hour Continuous Working
Material: Aluminum alloy for tube body, iron for upper and lower ends (thickness 5MM)
Certificate: CE

Dimension (mm)

Lifting Column Stroke Selection

Initial height	265mm	315mm	360mm	275mm	325mm	370mm
Final height	540mm	690mm	790mm	550mm	700mm	800mm
Stroke range	275mm	375mm	430mm	270mm	475mm	430mm
Maximum load capacity	80kg	80kg	120kg	80kg	80kg	120kg
No-load lifting speed	4mm/s	8mm/s	4mm/s	4mm/s	8mm/s	4mm/s

Tips: What is Electric Lifting Column?

The electric lifting column is a device that controls the passage of vehicles, and can be used in conjunction with the gate control system, or can be used alone. It is mainly designed and developed for sensitive areas to prevent unauthorized vehicles from forcibly intruding, and has high practicability, reliability and safety. It is composed of bottom base, lifting blocking barricade column, power transmission device, control and other parts. According to different needs, it has a variety of configuration options to choose from, which can meet various functional requirements.
