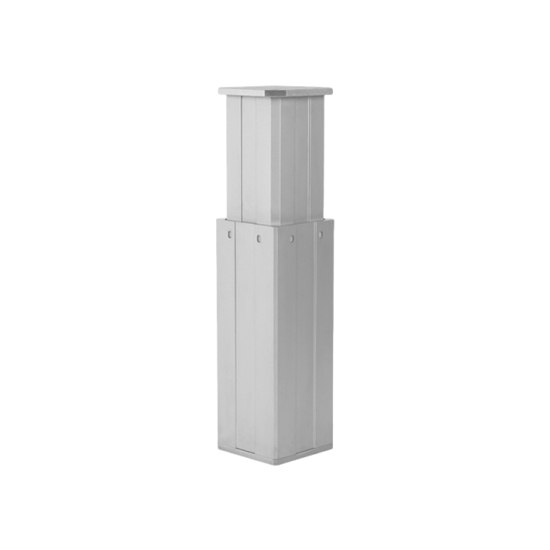

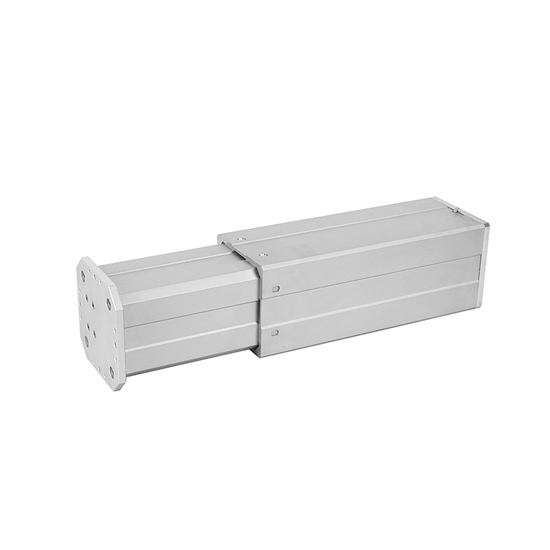

Heavy Duty Industrial Lifting Column, DC 24V/29V, 500N-10000N

0 reviews • Write a review

from

$663.38

Ex Tax: $663.38

Stock: In Stock
Model: RDDLZ-LC-ZT21LC
Weight: 1.00
SKU: RDDLZ-LC-ZT21LC

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The heavy-duty industrial lifting column has the highest IPX6 protection level, the relative humidity range is 30%~75%, and the operating temperature range is 10℃ to 40℃. It is widely used in various industries, medical, auto parts and other fields.

Features

The industrial lifting column uses high-quality raw materials and mature production technology.
The motor adopts metal design inside and outside, and the noise is small during operation, which is suitable for working environments with high requirements for noise.
It is equipped with a high-speed servo motor, stable operation, fast response, and suitable for a variety of industrial applications.
Heavy-duty industrial lifting columns can be customized according to customer needs. Please contact us if you have any needs.

Specification

Model: RDDLZ-ZT21LC-Z12
Protection: Class Ⅲ
Protection type: Max.IPX6
Relative humidity: 30%~75%
Ambient temperature: 10~40℃
Static load: DC 24V/29v
Duty cycle: 2/18 min.or 10%, Max. 5 switiching cycles per minute
Load: Push/Pull: 500N~10000N/500N~6000N
Fitting dimension: 200mm~2400mm
Stroke: 50mm~2000mm
Color: Light grey RAL Aluminium
Adjustment speed: 5~100mm/sec
Limit switch: Limit switch with micro switch

Dimension (mm)

Note: The specific size can be customized according to customer needs. Please contact us if you need it.

Applications

Tips: How to maintain heavy-duty industrial lifting columns?

Wipe the exterior with a soft cloth regularly to avoid dust and oil accumulation and prevent moisture from entering electrical components.
Check power cords and electrical connections regularly to ensure they are not loose or damaged.
Lubricate mechanical parts regularly to reduce friction and avoid excessive use of grease.
Test the lifting function of the lifting column to ensure normal travel and push-pull force to avoid jamming.
Ensure that the ambient temperature and humidity are within the appropriate range to avoid extreme conditions affecting performance.
Ensure that the load does not exceed the rated range to avoid overloading.
Follow intermittent working cycles to avoid long-term continuous operation.
