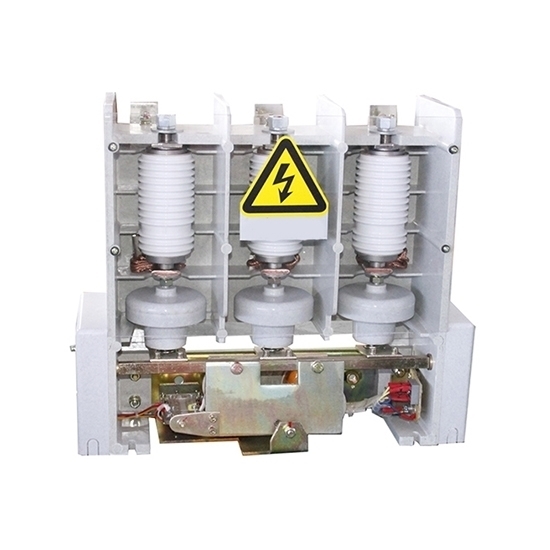

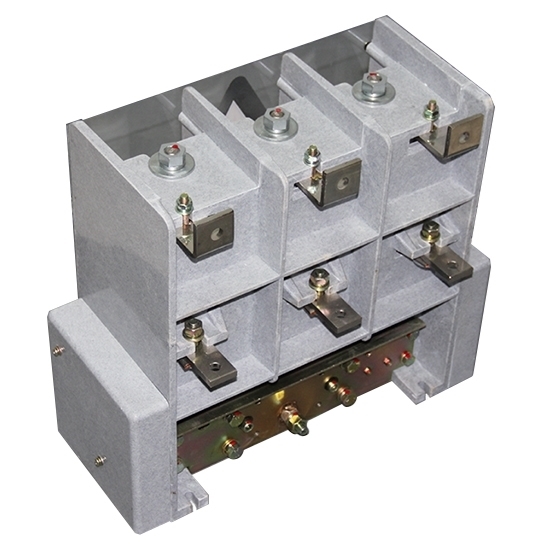

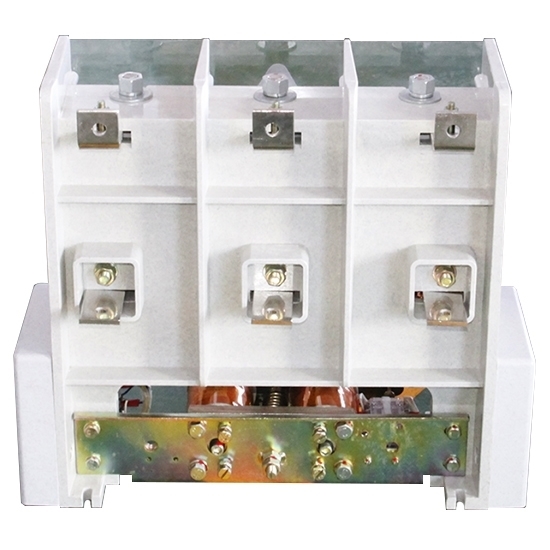

3 Phase AC Vacuum Contactor, 250/400/630A, 7.2kV

0 reviews • Write a review

from

$895.95

Ex Tax: $895.95

Stock: In Stock
Model: RDDLZ-VCON-250630
Weight: 1.00
SKU: RDDLZ-VCON-250630

Available Options

Rated Current

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy AC 110V/ 220V rated operation voltage vacuum contactor from RDDLZ. 2500A - 6300A max breaking current, 200A - 630A rated current, 1.5±0.5 mm contact distance. It is especially suitable for use in basic industry, metallurgy, petroleum, chemical industry, mining and docks.

Specification

Model		RDDLZ-JCZ5-7.2
Rated voltage		7.2kV
Rated current		250A	400A	630A
Rated closed current (valid values)		2500A	4000A	6300A
Rated max breaking current		2000A	3200A	5040A
4s thermal stability of the current		2500A	4000A	6300A
Max breaking current		2500A	4000A	6300A
Power frequency withstand voltage (V)		32kV
Allows the operating frequency		300 times/ h
Electric life	AC-3	25x10⁴ times
	AC-4	10x10⁴ times
Electrical life		30x10⁴ times
Rated operation voltage		AC 110V/ 220V
Closing coil absorption current		≤DC 6/ 3 A
Keep coil keeping current		D:DC 0.32/ 0.16 A
Shunt coil tripping current		J:DC 2.5/ 1.3 A
Contact from		4~5.5 mm
Contact distance		1.5±0.5 mm
Average closing speed		0.1~0.25 m/ s
Average break-brake speed		0.3~0.6 m/ s
Three phase break-brake synchronism		≤2 ms
Closing time/break-brake time		≤150/ ≤50 ms
Resistance (20℃)		≤250 μΩ
Phase		3
Number of pole		4
Frequency		AC 50Hz or 60Hz
Ambient temperature		-25℃ to 40℃
Packaging details		Standard package or according to customer's requirements

AC vacuum contactor outline and installation dimension (Unit: mm)

Tips: How to install vacuum AC contactor?

The vacuum AC contactor should generally be installed on a vertical surface, and the inclination should not exceed 5°. For AC contactors with heat dissipation holes, the heat dissipation holes should be placed up and down to facilitate heat dissipation.
When installing and wiring, do not lose the parts inside the vacuum AC contactor to avoid jamming or short-circuit failure.
The fixing screws should be tightened to prevent vibration during operation.
When metal beads appear on the surface of the contact due to electric arc, file and repair it in time. However, the oxide film produced on the surface of the silver and silver alloy contacts does not need to be filed because of the small contact resistance, otherwise the life of the contacts will be shortened.
The contacts of the vacuum AC contactor should be regularly cleaned and kept clean, but oiling is not allowed.
