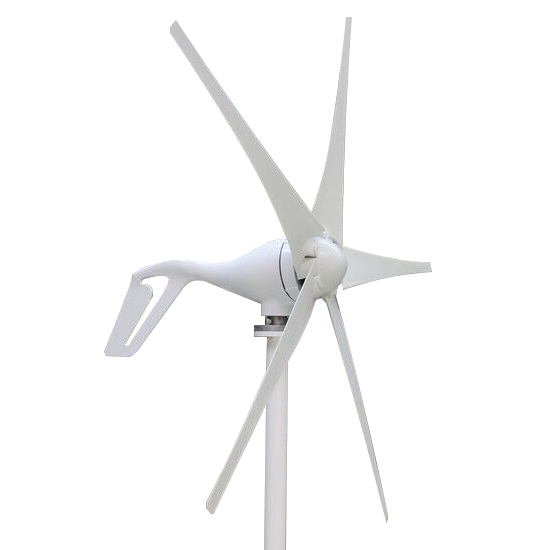

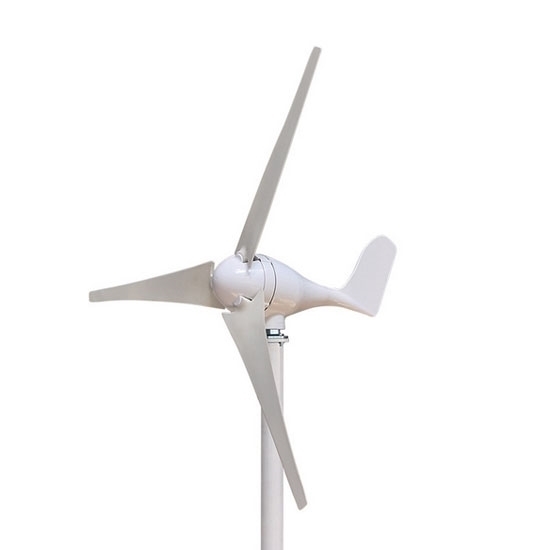

300W Horizontal Axis Wind Turbine, 12V/24V

0 reviews • Write a review

from

$361.84

Ex Tax: $361.84

Stock: In Stock
Model: RDDLZ-WT-S300
Weight: 1.00
SKU: RDDLZ-WT-S300

Available Options

Short Description

Rated Voltage

With Matched Controller

Wind Turbine Blades

Installation Method

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost small 300W horizontal axis wind turbine for home use, rated voltage 12V/24V. The horizontal wind turbine has a wide range of applications in streetlights, forest fires, power plants and islands.

Specification:

Model	RDDLZ-WT-NE-300S5
Matched Controller Model	RDDLZ-WTC-400
Rated Power	300W
Maximum Power	330W
Rated Voltage	12V/24V
Start Up Wind Speed	2.0 m/s
Rated Wind Speed	12 m/s
Survival Wind Speed	55 m/s
Wheel Diameter	1.35m
Blase Number	Nylon Fiber
Generator	Three Phase Permanent Magnet AC Generator
Magnetic Steel	NdFeB
Generator Case	Die-Casting Aluminum
Controller System	Electromahnet
Speed Regulation	Automatically Adjust Windard
Installation Flange	DN20
Working Temperature	-40°C~80°C
Gross Weight	13kg
Service Life	15 years
Warranty	18 months
Top Net Weight	6.5kg
Package Dimensions	670280210mm

300W Wind Turbine Power Curve

Dimensions
Features
1. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

300W Wind Turbine (Flange Seat) Exploded View

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Tips: Why can large wind turbines produce large amounts of power at such a slow speed?

Large wind turbines use speed-increasing gear boxes to control the speed of blade rotation. Low speed rotational inertia is small, and the influence on blade life and wear is minimal, and low speed is easy to control.

Large wind turbines must implement speed control, so there are gearboxes, yaw systems, brake systems, hydraulic systems, control systems, and so on. Normally, the fan blades rotate at about 27 revolutions per minute. However, the speed of the generator can reach 1500 revolutions per minute after the increase of gear box, which can generate stable power.
