1000W Horizontal Axis Wind Turbine, 24V/48V

0 reviews • Write a review

from

$1,068.69

Ex Tax: $1,068.69

Stock: In Stock
Model: RDDLZ-WT-1000M6
Weight: 1.00
SKU: RDDLZ-WT-1000M6

Available Options

Short Description

Rated Voltage

With Matched Controller

Wind Turbine Blades

Installation Method

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

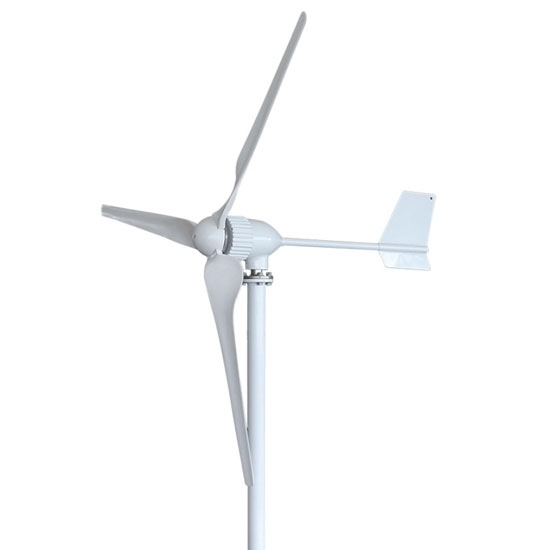

1000 watt horizontal axis wind turbine for sale, rated wind speed 11 m/s. Horizontal axis wind turbines are manufactured using the latest technology and the highest quality materials to ensure reliability and durability.

Specification:

Model	RDDLZ-WT-1000M6
Matched Controller Model	RDDLZ-WTC-1000
Rated Power	1000W
Maximum Power	1050W
Rated Voltage	24V/48V
Start Up Wind Speed	2.5 m/s
Rated Wind Speed	11 m/s
Survival Wind Speed	40 m/s
Wheel Diameter	2.05m
Blase Number	Reinforced Glass Fiber
Generator	Three Phase Permanent Magnet AC Generator
Magnetic Steel	NdFeB
Generator Case	Die-Casting Aluminum
Controller System	Electromahnet
Speed Regulation	Automatically Adjust Windard
Installation Flange	DN40
Working Temperature	-40°C~80°C
Gross Weight	38kg
Top Net Weight	31kg
Service Life	15 years
Warranty	18 months
Package Dimensions	1320395300mm

Features
1. The starting speed is slow, the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

1000W Wind Turbine Power Curve

1 kW Wind Turbine (Flange Seat) Exploded View

1. The body behind the wind wheel, 2. Front body of wind wheel, 3. Wind wheel hub, 4. Wind turbine shaft 5. Anti-loose nut, 6. Fairing, 7. Shell locking bolt, 8. Body locking bolt, 9. Wind turbine flange seat, 10. Rubber pad, 11 Bolt, 12. Flat washer, 13. Elastic washer, 14. Nut, 15. Steel tube bracket (tower), 16. Lock nut, 17. Stainless steel screw, 18. Wind wheel.

Tips: How many watts of wind turbines should be used for household electricity?

300W wind turbine, less power, can only be used for TV, lighting, electric fans. 500W fan can carry TV, lighting, electric fan, washing machine. The 1000W fan can supply electricity for TV sets, lighting, electric fans, washing machines and small refrigerators.
