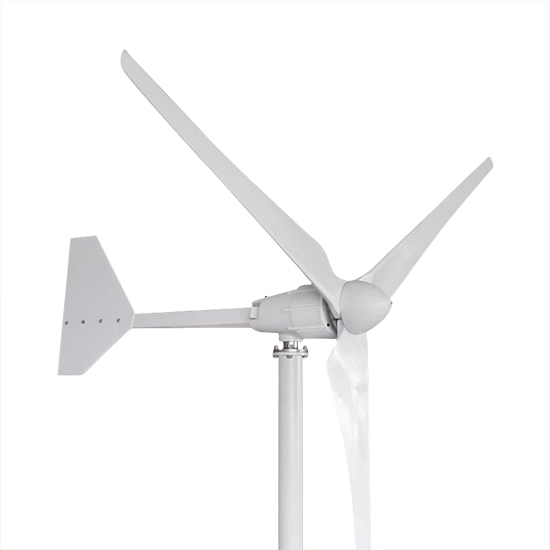

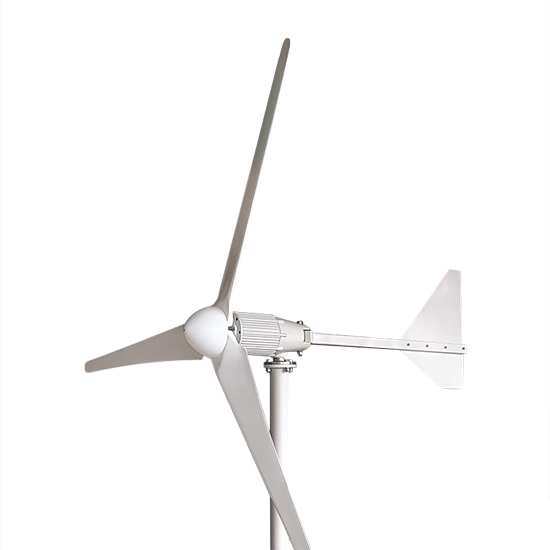

Mini 2000 Watt wind turbine generator for sale. With a safe wind resistance up to 45m/s, horizontal axis wind generator ensures steady energy generation. Automatic windward adjustment, electromagnetic braking. Compact windmill design, high efficiency, low vibration, strong wind resistance.

Specification

Model	RDDLZ-NE-2000L1
Rated Power	2000W
Maximum Power	2300W
Rated Voltage	48V/96V (optional)
Starting Wind Speed	2.5m/s
Rated Wind Speed	10m/s
Safe Wind Speed	≤45m/s
Blade Length	1.68m
Number of Blades	3
Blade Material	Reinforced Fibreglass
Generator Type	Rare Earth Permanent Magnet Generator
Magnetic Steel Material	NdFeB
Braking Method	Electromagnetism
Wind Adjustment	Automatic windward adjustment
Working Temperature	-40~80°C

Features

Compact Portable Design: Small wind generator suitable for home and marine applications.
Wide Application Range: 2000W horizontal axis wind turbine works for caravan, offshore and onshore power supply.
Efficient Wind Utilization: High energy conversion with low start-up speed and minimal vibration.
Durable Construction: Strong wind resistance capability ensures reliable operation in various conditions.
Flexible Voltage Options: 48V or 96V operation allows the portable wind generator to integrate seamlessly with various power systems.
User-Friendly Installation: Simple setup process with automatic windward adjustment feature.

Structure Diagram

1. Fairing	8. Bolt	15. Flat washer
2. Wind turbine hub	9. Flat washer	16. Elastic washer
3. Wind turbine front body	10. Nut	17. Nut
4. Wind turbine rear body	11. Tail rudder plate	18. Anti-loosening nut
5. Anti-loosening nut	12. Wind turbine flange seat	19. Stainless steel screw
6. Tail rudder fixing tube	13. Rubber washer	20. Wind blade
7. Tail rudder	14. Bolt	21. Steel pipe bracket (tower)

Application

Tips: Can the 2000W horizontal axis wind turbine be used in industry?

Yes, Mini 2000 Watt horizontal axis wind generator is perfectly suited for industrial applications where reliable auxiliary power is needed. Robust 48V/96V output efficiently supports essential systems like monitoring equipment, telecommunications, and lighting, making windmill generator an ideal renewable energy solution for remote industrial sites and automated facilities.
