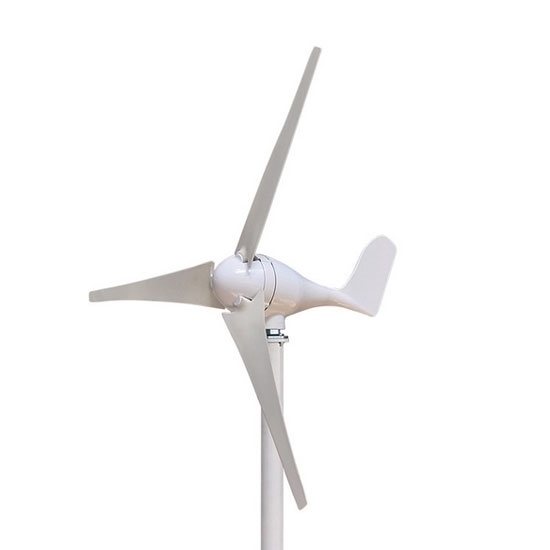

200W Horizontal Axis Wind Turbine, 12V/24V

0 reviews • Write a review

from

$326.45

Ex Tax: $326.45

Stock: In Stock
Model: RDDLZ-WT-S200
Weight: 1.00
SKU: RDDLZ-WT-S200

Available Options

Short Description

Rated Voltage

With Matched Controller

Wind Turbine Blades

Installation Method

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small horizontal axis wind turbine power 200W, rated voltage can choose 12V or 24V, it can be used in wind solar hybrid streetlight, boat and your home.

Specification:

Model	RDDLZ-WT-NE-200S5
Matched Controller Model	RDDLZ-WTC-400
Rated Power	200W
Maximum Power	230W
Rated Voltage	12V/24V
Start Up Wind Speed	2.0 m/s
Starting Torque	< 0.1Nm
Rated Torque	2.55 Nm
Rated Wind Speed	11.5 m/s
Survival Wind Speed	55 m/s
Wheel Diameter	1.25m
Blase Number	Nylon Fiber
Generator	Three Phase Permanent Magnet AC Generator
Magnetic Steel	NdFeB
Generator Case	Die-Casting Aluminum
Controller System	Electromahnet
Speed Regulation	Automatically Adjust Windard
Installation Flange	DN20
Working Temperature	-40°C~80°C
Gross Weight	11kg
Top Net Weight	6.2kg
Service Life	15 years
Warranty	18 months
Package Dimensions	670280210mm

200W Wind Turbine Power Curve

Dimensions
Features

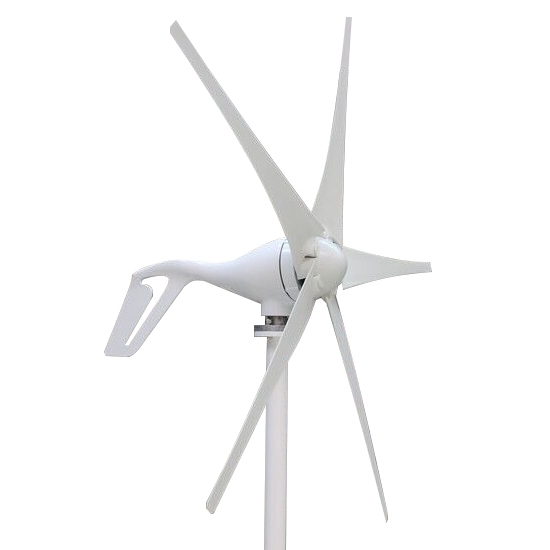

1. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

200W Wind Turbine (Flange Seat) Exploded View

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Tips: Advantages of wind turbine

Wind energy resources are inexhaustible, the use of wind power can reduce environmental pollution, save coal, oil and other conventional energy. Wind power generation technology is mature, relatively low cost in renewable energy, has broad prospects for development. Wind power generation technology can be applied flexibly. It can be connected to the grid or operated independently from the grid. It can also be combined with other energy technologies to form complementary power generation systems. Small wind turbines can provide electricity for production and living in remote areas.
