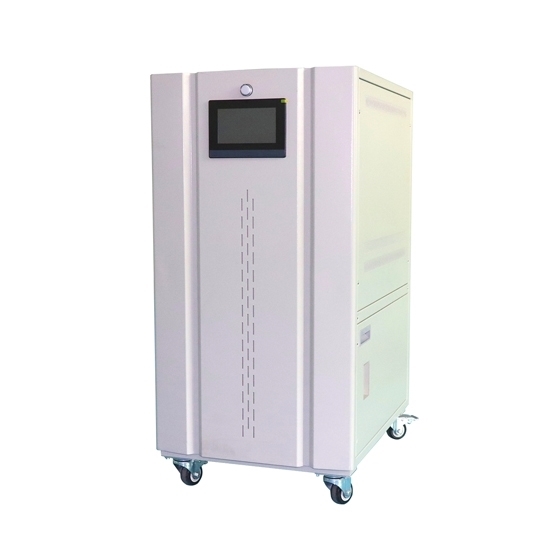

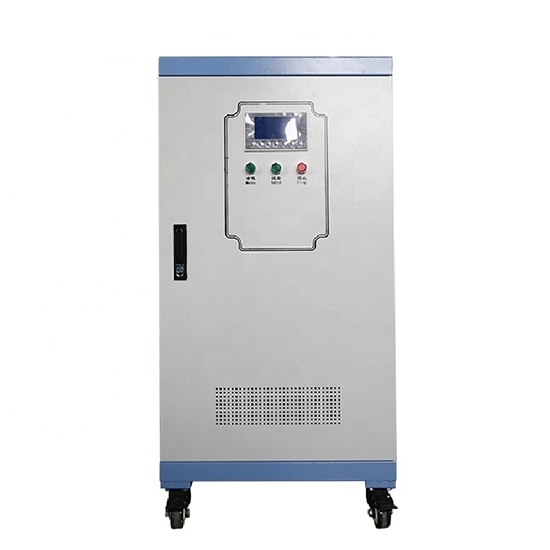

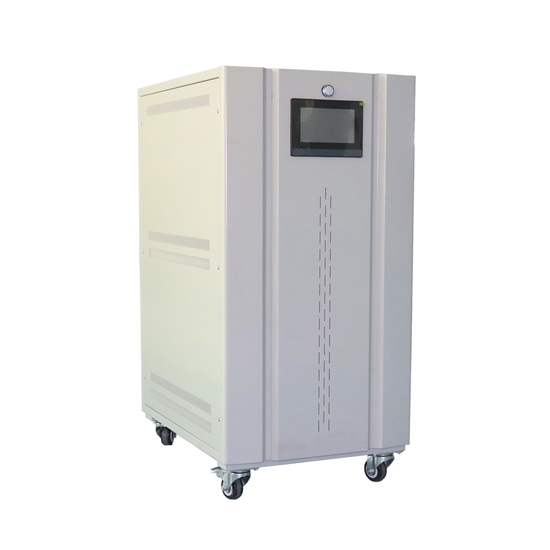

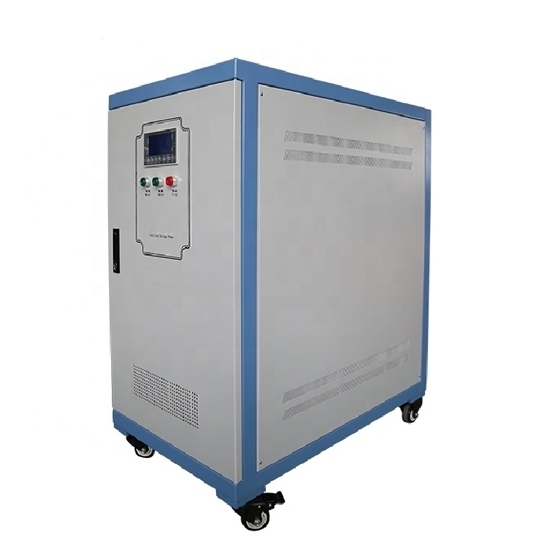

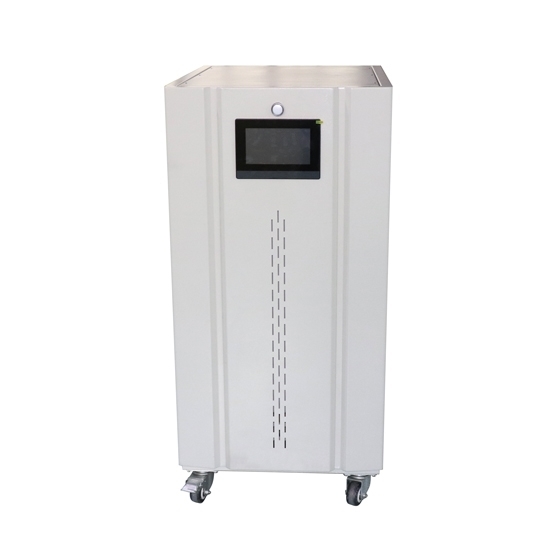

50 KVA 3 Phase Industrial AC Automatic Voltage Stabilizer

Free Shipping

50 KVA 3 Phase Industrial AC Automatic Voltage Stabilizer

0 reviews • Write a review

from

$6,829.23

Ex Tax: $6,829.23

Stock: In Stock
Model: RDDLZ-AVS-3P50K
Weight: 1.00
SKU: RDDLZ-AVS-3P50K

Available Options

Output Line Voltage (L+L)

Output Accuracy

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50 kVA Voltage Stabilizer Features

Three phase 4-line 175V-265V (phase voltage) 304V-456V AC (line voltage) of wide input voltage range, 380V output
High technology with computer programming control
The high accuracy of the output voltage (output voltage can be customized)
Perfect protection function: Over/ low voltage protection, overheat/ load protection, short circuit protection
High efficiency: More than 95%

50 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is widely used in post and telecommunications, department stores, elevators, hospitals, schools, printing, securities, and other occasions where all need normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computer power and support.

Model Number	RDDLZ-SBW/ZBW-50K
Capacity	50 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	3 Phase 4-line
Input Voltage Range	±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage	3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy	±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency	50Hz/60Hz
Current Type	AC
Efficiency	≥95%
Response Time	≤1.5S
Ambient Temperature	-15°C~+40°C
Cooling Method	Air-cooled
Insulation Resistance	≥5MΩ
Electrical Intensity	Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity	Overload current (%)	Duration (min)
	20	≤60
	40	≤15
	60	≤5
Waveform Distortion	Non-lack fidelity waveform
Protection	Over-voltage, over-current, feed phases
Protection Grade	IP 24
Warranty	12 months
Certificate	ISO9001:2008, CE
Weight	350 Kg
Package Size	800x620x1350 mm

3 Phase Voltage Stabilizer Schematic Diagram

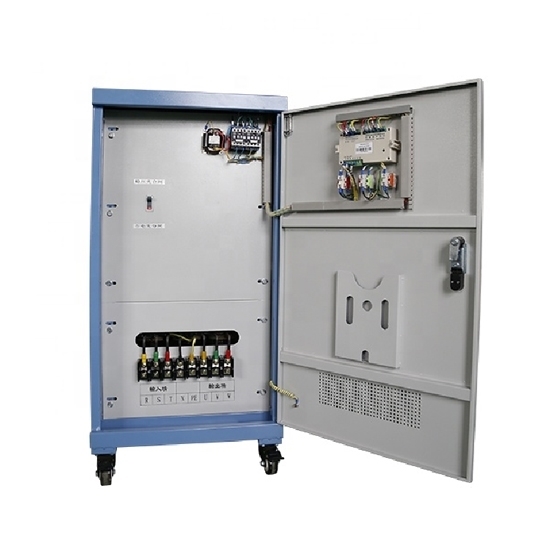

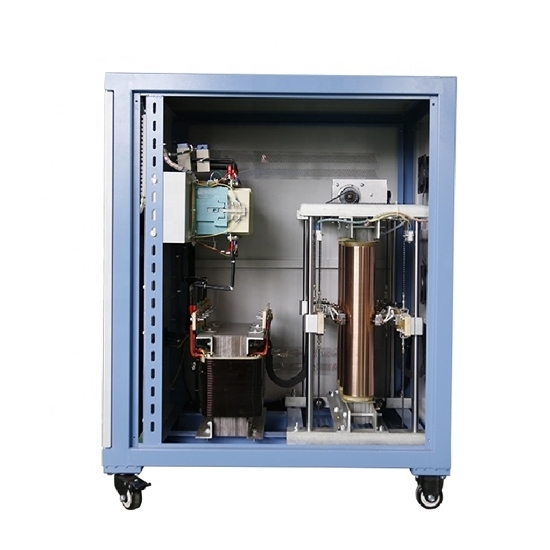

Industrial Voltage Stabilizer Inner Detail

Tips: Why is the voltage of a 50kVA industrial voltage stabilizer unstable?

The input voltage is too high or too low. The voltage range of 50kVA three-phase instrial voltage stabilizer is 304V-456V. If the input voltage exceeds the regulated range or is very low, the automatic protection system of the regulated power supply will start, thus causing the output voltage to be unstable or stop working directly.
The input voltage is unbalanced in three phases, that is, the voltage of one of the three phases of the stabilizer is unstable, which will also lead to the output voltage of the stabilizer is unstable.
