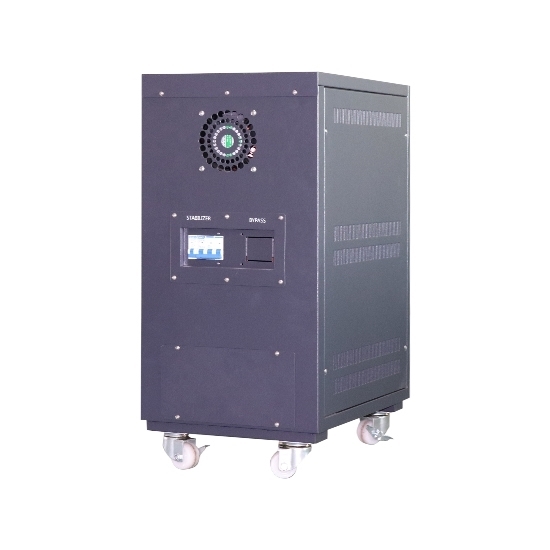

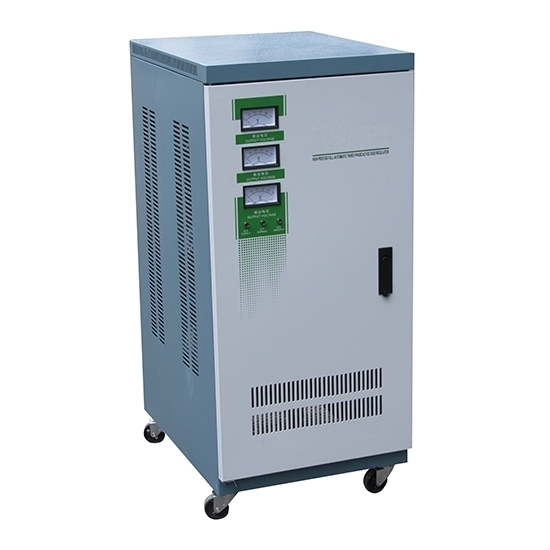

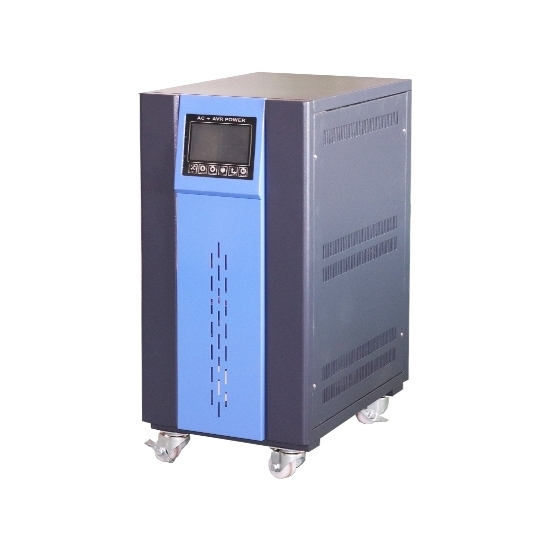

15 KVA 3 Phase AC Automatic Voltage Stabilizer

0 reviews • Write a review

from

$2,962.31

Ex Tax: $2,962.31

Stock: In Stock
Model: RDDLZ-AVS-3P15K
Weight: 1.00
SKU: RDDLZ-AVS-3P15K

Available Options

Output Line Voltage (L+L)

Output Accuracy

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Three-phase high precision full automatic 15 kVA AC voltage stabilizer is composed of the regulator, servo motor, and automatic control circuit. When the voltage of the power grid is not stable or the load varies, the automatic sampling control circuit makes a signal to drive the servo motor to adjust the position of the carbon brush of the regulator to make the output voltage stable.

15 kVA Voltage Stabilizer Specifications

Model Number	RDDLZ-TNS/JSW-15K
Capacity	15 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	3 Phase 4-line
Input Voltage Range	±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage	3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy	±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency	50Hz/60Hz
Current Type	AC
Efficiency	≥95%
Response Time	≤1.5S
Ambient Temperature	-15°C~+40°C
Cooling Method	Air-cooled
Insulation Resistance	≥5MΩ
Electrical Intensity	Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity	Overload current (%)	Duration (min)
	20	≤60
	40	≤15
	60	≤5
Waveform Distortion	Non-lack fidelity waveform
Protection	Over-voltage, over-current, feed phases
Protection Grade	IP 24
Warranty	12 months
Certificate	ISO9001:2008, CE
Weight	140 Kg
Package Size	450x370x790 mm

3 Phase Voltage Stabilizer Schematic Diagram

Details

Tips: How to select the right voltage stabilizer?

It depends on the type of electrical equipment you use. Generally, the load is not purely resistive. Therefore, in the actual selection, the regulated power supply shall be reasonably selected according to the rated power, power factor, and load type of the electrical equipment. The output power shall be reserved with an appropriate margin, especially for the impact load selection, the margin shall be larger, and the specific selection is as follows:

For pure resistive loads such as incandescent lamps, resistance wire, electric furnaces, and other equipment, the power of the voltage regulator shall be 1.5-2 times of the power of the load equipment.
Inductive and capacitive loads such as fluorescent lamps, fans, motors, water pumps, air conditioners, computers, refrigerators, etc. The power of the regulator shall be 3 times the power of the load equipment.
Under the condition of large inductive and capacitive load, the starting current of the load should be considered to be very large (up to 5-8 times of the rated current), so the power of the voltage regulator should be more than 3 times of the load power.
