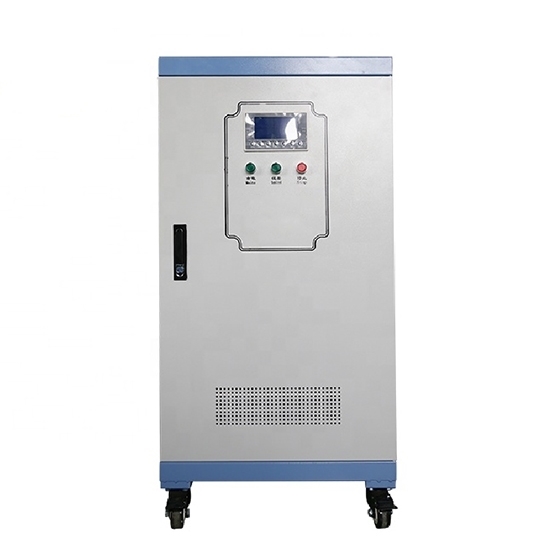

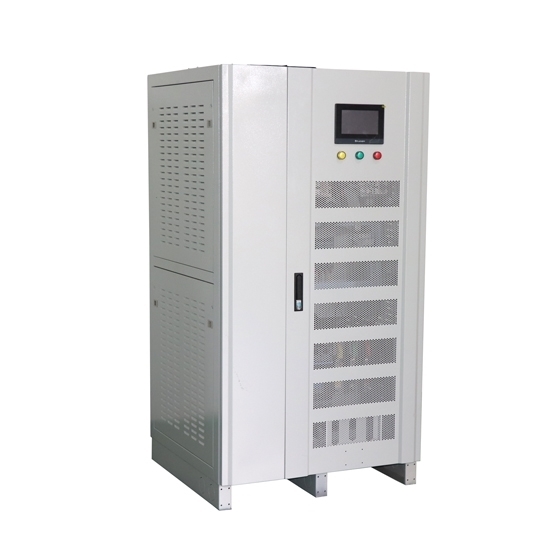

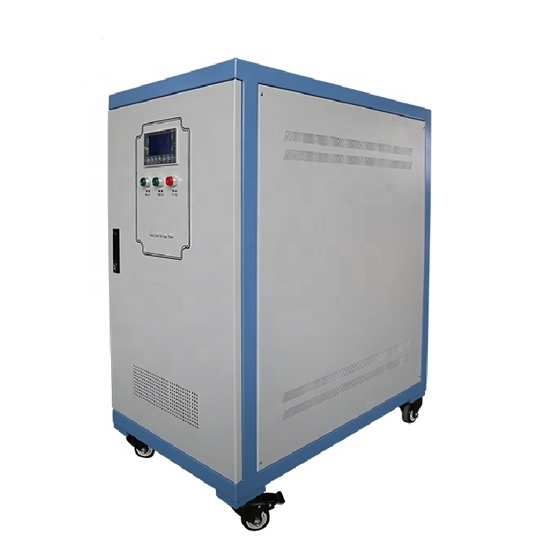

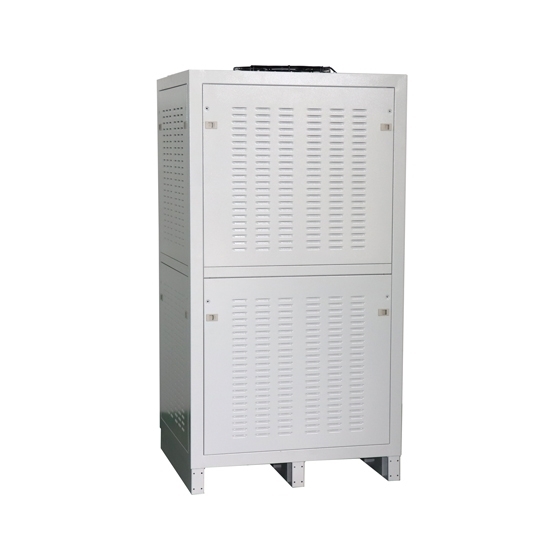

150 KVA 3 Phase Industrial AC Automatic Voltage Stabilizer

Free Shipping

150 KVA 3 Phase Industrial AC Automatic Voltage Stabilizer

0 reviews • Write a review

from

$13,044.62

Ex Tax: $13,044.62

Stock: In Stock
Model: RDDLZ-AVS-3P150K
Weight: 1.00
SKU: RDDLZ-AVS-3P150K

Available Options

Output Line Voltage (L+L)

Output Accuracy

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

150 kVA Voltage Stabilizer Features

Input: Three phase and four-line system, 175V-265V (phase voltage), 304V-456V (line voltage)
Output: Three phase 380V, other voltages can be customized
Step-less Automatic Voltage Regulation
High efficiency: More than 95%
High overload capability
Perfect protection function: Over/ low voltage protection, overheat/ load protection, short circuit protection
2 Years Standard Warranty
Compliance with International Standards

150 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is specifically designed for the needs of the more demanding industrial applications where the need for a more robust and virtually maintenance-free solution is required.

150 kVA Voltage Stabilizer Specifications

Model Number	RDDLZ-SBW/ZBW-150K
Capacity	150 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	3 Phase 4-line
Input Voltage Range	±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage	3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy	±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency	50Hz/60Hz
Current Type	AC
Efficiency	≥95%
Response Time	≤1.5S
Ambient Temperature	-15°C~+40°C
Cooling Method	Air-cooled
Insulation Resistance	≥5MΩ
Electrical Intensity	Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity	Overload current (%)	Duration (min)
	20	≤60
	40	≤15
	60	≤5
Waveform Distortion	Non-lack fidelity waveform
Protection	Over-voltage, over-current, feed phases
Protection Grade	IP 24
Warranty	12 months
Certificate	ISO9001:2008, CE
Weight	600 Kg
Package Size	1000x720x1700 mm

3 Phase Voltage Stabilizer Schematic Diagram

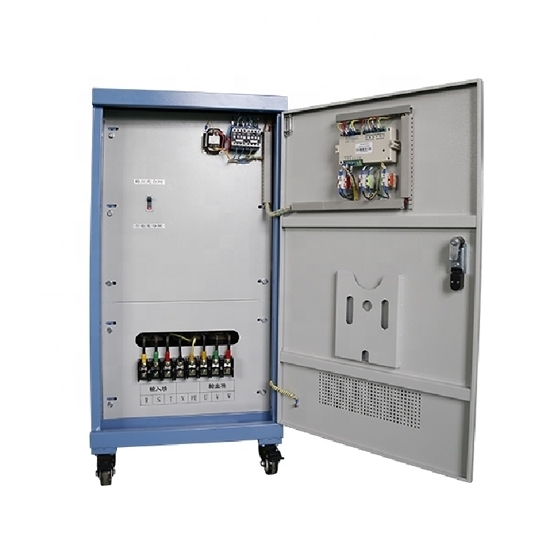

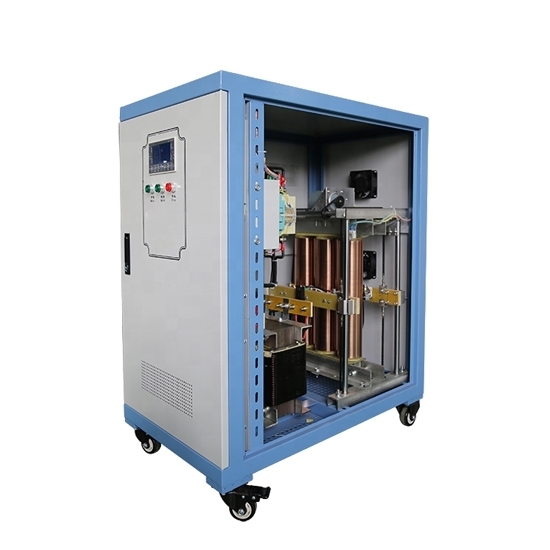

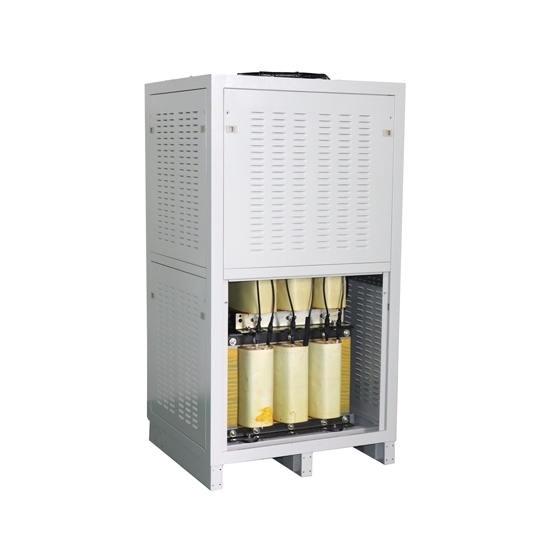

Industrial Voltage Stabilizer Inner Detail

Tips: Automatic AC voltage stabilizer wiring method

Fully automatic AC voltage stabilizer is divided into single-phase and three-phase stabilizers and their wiring method is very simple. For a single-phase voltage stabilizer, there are two lines at the output, zero line and live line. We just need to connect the zero line and the live line at the input end to the main power supply, the zero line and the fire line at the output end to the required equipment, and then connect the ground line.

For three-phase voltage stabilizer, the output voltage is a three-phase 380v, three-phase four-wire system, which means that there are three live wires and one neutral wire. We should note that the three-phase voltage stabilizer is phase sequence protected. The phase sequence must not be mistaken when wiring. The input end of the voltage stabilizer is connected to the main power supply, and the output of that is connected to the device. Observe whether the input voltage and output voltage of the regulated power supply are stable. If the output is stable and there is no abnormality, then the three-phase voltage stabilizer can be used.
