DC current sensor has measuring range of 1mA/100mA/1A/2A/5A/10A/50A/100A/200A to 800A.

Specification:

Model	RDDLZ-CURTS-DZIA	RDDLZ-CURTS-DZIB	RDDLZ-CURTS-DZIC	RDDLZ-CURTS-DZID
Shipping weight	0.5kg
Measuring range of input current *	DC 0-1mA/ 0-5mA/ 0-20mA/ 0-50mA/ 0-100mA/ 0-500mA/ 0-1A/ 0-5A/ 0-10A	0-20A/ 0-50A/ 0-100A/ 0-150A	DC 0-50A/ 0-100A/ 0-150A/ 0-200A/ 0-300A/ 0-400A	DC 0-200A/ 0-400A/ 0-500A/ 0-600A/ 0-800A
Output signal *	DC 4-20mA, DC 1-5V, DC 0-5V, DC 0-10V (customizable)
Power supply *	DC 24V, DC 12V, AC 220V, AC 110V (customizable)

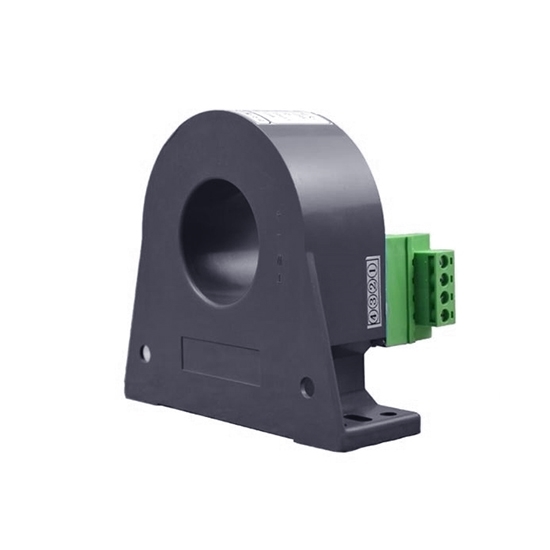

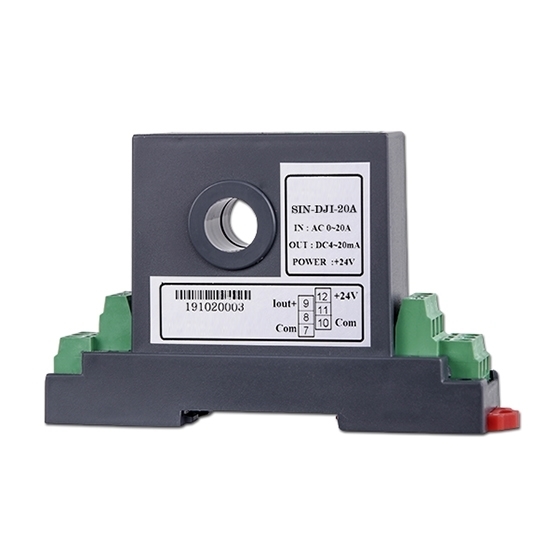

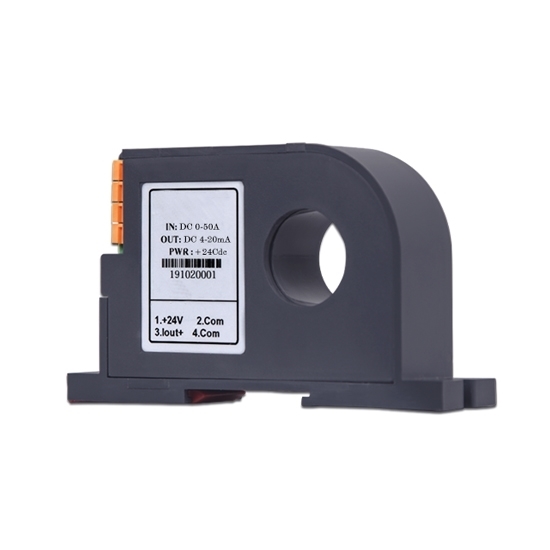

Hole diameter *	No hole	8mm, 12mm, 15mm	22mm	35mm, 45mm, 55mm (customizable)
Accuracy	0.5%F.S.
Isolation voltage	3kV/50Hz/1min
Offset voltage	≤10mV
Temperature drift	≤100PPM/℃
Frequency bandwidth	20~50kHz
Current consumption	＜5mA
Load capacity	Voltage output: 5mA, current output: 6V
Response time	＜250ms
Overload capacity	120% nominal input
Work temperature	-10~+70℃
Storage temperature	-25~+85℃

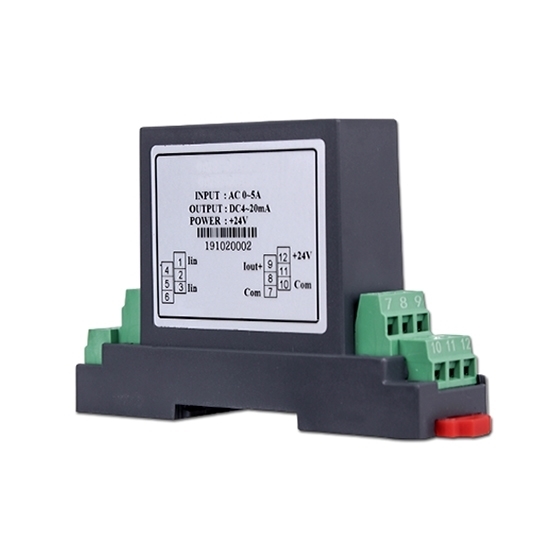

Measuring method	Terminal connection or through-hole type
Installation	DIN rail and screw fixation

Note: RDDLZ can customize DC bidirectional current sensor with maximum measuring range of -50A~0~50A. For example, the measuring range of input current is -50A ~ 0 ~ +50A, and the output signal is 4-20mA. Then the output signal 4-12mA corresponds to -50A~0, and the output signal 12-20mA corresponds to 0~+50A. And so on for other output signal modes. If you have any questions, please feel free to contact us.

Hole diameter and corresponding current for reference:

Hole diameter	Current
8mm	0-20A ~ 0-50A
12mm	0-50A ~ 0-100A
15mm	0-100A ~ 0-150A
22mm	0-150A ~ 0-350A
35mm	0-350A ~ 0-800A
45mm	0-800A
55mm	0-800A

Dimension and wiring diagram:

Details

Tips: Current sensor applications

Detect the current harmonics of the electronic equipment absorbing from power grid.
Detect the slight current waveform distortion in the PWM circuit.
In spot welder and pulse plating equipment, the Hall effect current sensor can be used to detect the current waveform and the peak voltmeter can be used to test the output voltage of sensor, thus calculating the measured peak current.
Hall effect current sensor has noninductive characteristic and response quickly. It's most suitable for detecting current signals in overcurrent or short-circuit protection circuits of the electronic equipment, so as to realize a fast protection.
Hall effect current sensor still has the electrical isolation in DC detection, which expands its application range.
In the electronic equipment that outputs current, Hall effect current sensor can also be used to obtain DC current signal, so as to realize current feedback, interception control, constant-current regulation, and overcurrent and short-circuit protection at the DC side.
