30 Ton Hydraulic Bottle Jack

0 reviews • Write a review

from

$343.07

Ex Tax: $343.07

Stock: In Stock
Model: RDDLZ-HBJ-30
Weight: 1.00
SKU: RDDLZ-HBJ-30

Available Options

Short Description

With Matched Hydraulic Pump

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a bottle jack at low cost. It is designed for lifting objects efficiently and safely. Smaller size and enough capacity, portability, flexibility and big jacking force. 30 ton hydraulic bottle jack works with a hydraulic pump well, suitable for a variety of environments.

Features

Hydraulic bottle jack with 30 ton capacity is designed for lifting heavy loads.
Blackening of the plunger surface to protect the using of the longevity of the product.
The plunger has the function of retracting automatically.
The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
30 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

Specifications

Hydraulic Bottle Jack	Model	RDDLZ-FCY-30100
	Tonnage	30 ton
	Self Height	162mm
	Stroke	100mm
	Outer Diameter	104mm
	Inner Diameter	60mm
	Weight	9.5kg
	Effective Area	33.16cm

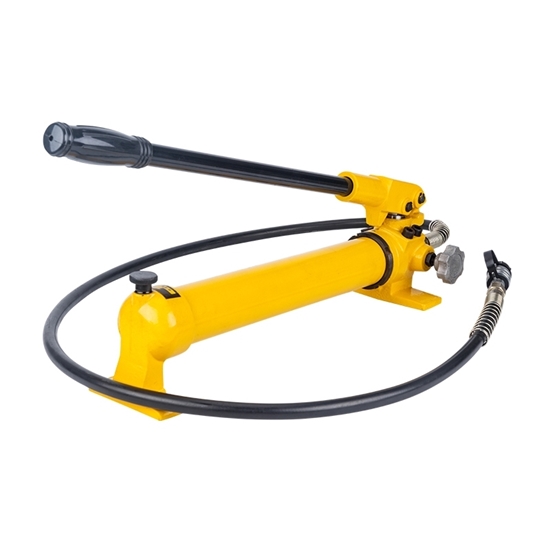

Matched Hydraulic Jack Pump	Model	RDDLZ-CP-700
	High Pressure	700kg/cm²
	Low Pressure	20kg/cm²
	High Pressure Flow	2.3CC
	Oil Storage Capacity	900CC
	Low Pressure Flow	13CC
	Weight	11kg

Details

*Notes

This hydraulic jack is not recommended for cars.
In order to operate correctly all cylinders need to be connected to a solid lifting surface.
Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.

Applications

At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

Tips: What is a hydraulic jack used for?

10 to 200 ton portable hydraulic jack with a smaller size, greater working capacity, flexibility and big jacking force, used for lifting in machinery manufacturing, bridge construction, die cooling, shipbuilding industry, etc.
