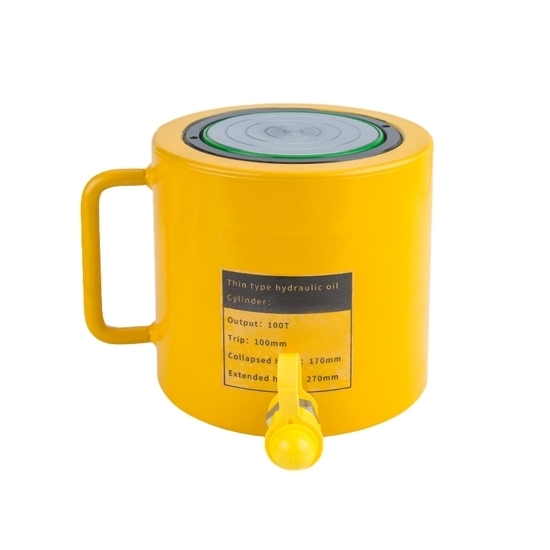

The provided hydraulic jack is used for lifting heavy objects efficiently and safely. Low price 100 ton hydraulic bottle jack comes with a 100mm stroke, smaller size and enough capacity, widely used in power maintenance, bridge maintenance and heavy lifting.

Features

• Hydraulic bottle jack with 100 ton capacity is designed for lifting heavy loads.
• Blackening of the plunger surface to protect the using of the longevity of the product.
• The plunger has the function of retracting automatically.
• The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
• 100 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

Specifications

Details

*Notes

• This hydraulic jack is not recommended for cars.
• In order to operate correctly all cylinders need to be connected to a solid lifting surface.
• Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.

Applications

At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

Tips: How to maintain a hydraulic jack?

• The bottom of the hydraulic jack should be flat and hard when used. The oil-free wooden board expands the pressure-bearing surface to ensure safety. Iron boards cannot be used instead of wooden boards to prevent sliding.
• It is required to be stable when lifting. After lifting the heavy object for a while, check whether there is any abnormality. If there is no abnormality, continue to lift the top. Do not lengthen the handle arbitrarily or operate it excessively.
• Not overloaded, super high. When the red line appears on the sleeve, it indicates that the rated height has been reached and the jacking should be stopped.
• When several hydraulic jacks are operating at the same time, there must be a special person to command, so that the lifting or lowering can be carried out synchronously. Wooden blocks should be supported between two adjacent hydraulic jacks to ensure intervals to prevent slipping.
• When using a hydraulic jack, always pay attention to the sealing part and the pipe joint part, and must ensure their safety and reliability.
• Hydraulic jacks are not suitable for places with acid, alkali or corrosive gas.
