20 Ton Hydraulic Bottle Jack

0 reviews • Write a review

from

$246.15

Ex Tax: $246.15

Stock: In Stock
Model: RDDLZ-HBJ-20
Weight: 1.00
SKU: RDDLZ-HBJ-20

Available Options

Short Description

With Matched Hydraulic Pump

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price hydraulic jack for sale online. It is a bottle jack that can lift objects efficiently and safely. 20 ton hydraulic bottle jack, 100mm stroke, portability, flexibility and big jacking force, widely used in foundations settlements and bridges.

Features

Hydraulic bottle jack with 20 ton capacity is designed for lifting heavy loads.
Blackening of the plunger surface to protect the using of the longevity of the product.
The plunger has the function of retracting automatically.
The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
20 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

Specifications

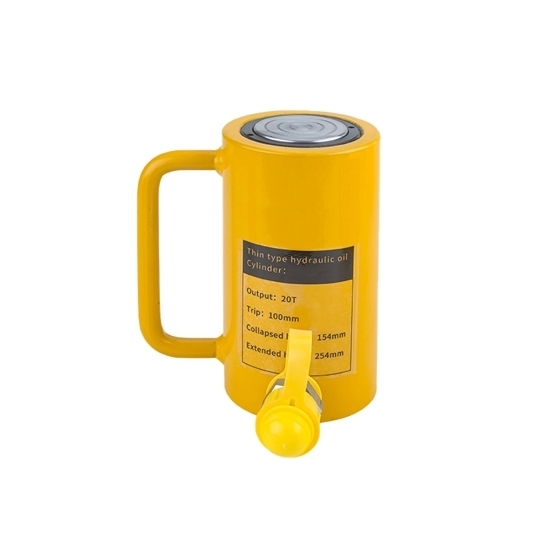

Hydraulic Bottle Jack	Model	RDDLZ-FCY-20100
	Tonnage	20 ton
	Self Height	156mm
	Stroke	100mm
	Outer Diameter	84mm
	Inner Diameter	50mm
	Weight	5.7kg
	Effective Area	33.16cm

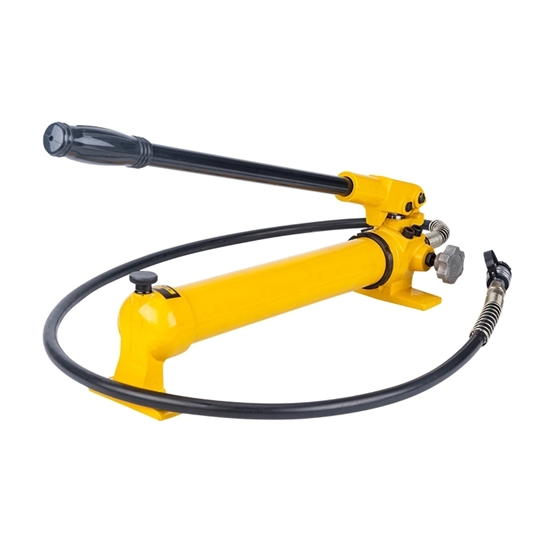

Matched Hydraulic Jack Pump	Model	RDDLZ-CP-700
	High Pressure	700kg/cm²
	Low Pressure	20kg/cm²
	High Pressure Flow	2.3CC
	Oil Storage Capacity	900CC
	Low Pressure Flow	13CC
	Weight	11kg

Details

*Notes

This hydraulic jack is not recommended for cars.
In order to operate correctly all cylinders need to be connected to a solid lifting surface.
Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.

Applications

At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

Tips: What is a separate jack?

A separate jack is a jack in which the power unit and the support unit are separated. It is divided into manual and electric, both of which use hydraulic methods for lifting, supporting and other work.
