150 Ton Hydraulic Bottle Jack

0 reviews • Write a review

from

$1,422.30

Ex Tax: $1,422.30

Stock: In Stock
Model: RDDLZ-HBJ-150
Weight: 1.00
SKU: RDDLZ-HBJ-150

Available Options

Short Description

With Matched Hydraulic Pump

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price hydraulic jack for sale online. It is a bottle jack that uses hydraulic power to lift heavy loads, lift up to 150 ton. Matched with a hydraulic pump, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

Features

Hydraulic bottle jack with 150 ton capacity is designed for lifting heavy loads.
Blackening of the plunger surface to protect the using of the longevity of the product.
The plunger has the function of retracting automatically.
The joint of the hydraulic bottle jack adopts a threader ZG3/8" fast connector, thread locking, and compact structure.
150 ton hydraulic jack is suitable for a variety of environments, commonly used in electric power, chemical industry, steel, machinery, industry and so on.

Specifications

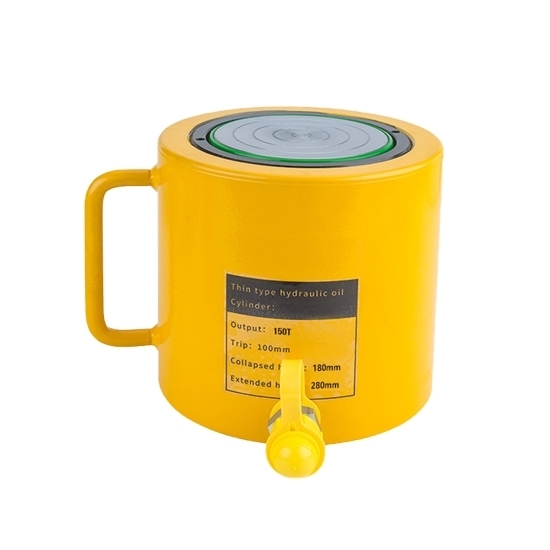

Hydraulic Bottle Jack	Model	RDDLZ-FCY-150100
	Tonnage	150 ton
	Self Height	180mm
	Stroke	100mm
	Outer Diameter	205mm
	Inner Diameter	135mm
	Weight	47kg

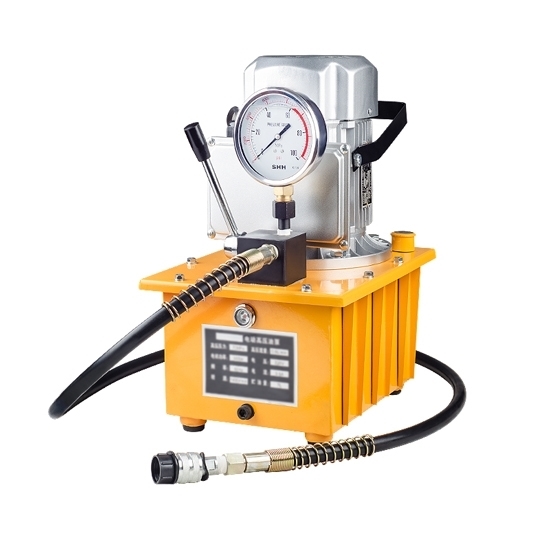

Matched Hydraulic Jack Pump	Model	RDDLZ-DYB-63A
	Motor Power	0.75kW
	Working Voltage	220V
	High Pressure	70Mpa
	Low Pressure	7Mpa
	High Pressure Flow	0.9L/min
	Low Pressure Flow	5L/min
	Fuel Tank Capacity	7L (Customizable, Sold without oil.)
	Motor Speed	1400r/min
	Weight	25.9kg

Details

*Notes

This hydraulic jack is not recommended for cars.
In order to operate correctly all cylinders need to be connected to a solid lifting surface.
Cylinder damage can result from the use of cylinders on sandy, earthen or loose surfaces.

Applications

At present, 10 to 200 ton hydraulic jacks are widely used in power maintenance, bridge maintenance, heavy lifting, static pile pressing, foundation settlement and bridge, especially in road and railway construction, mechanical adjustment, and equipment dismantling.

Tips: Advantages of Hydraulic Jacks

The entire hydraulic transmission equipment of the hydraulic jack is small in size and dense in structure, the force is relatively balanced and uniform and the internal load curve changes relatively smoothly.
Hydraulic jacks are relatively easy to achieve overload protection, which is to achieve protection by setting a safety valve during work. At the same time, hydraulic equipment can automatically perform lubrication work, which ensures that the equipment has a longer life.
Hydraulic transmission requires a separate energy source during use and can be used repeatedly until the hydraulic oil reaches the specified replacement work cycle, which is generally very long.
