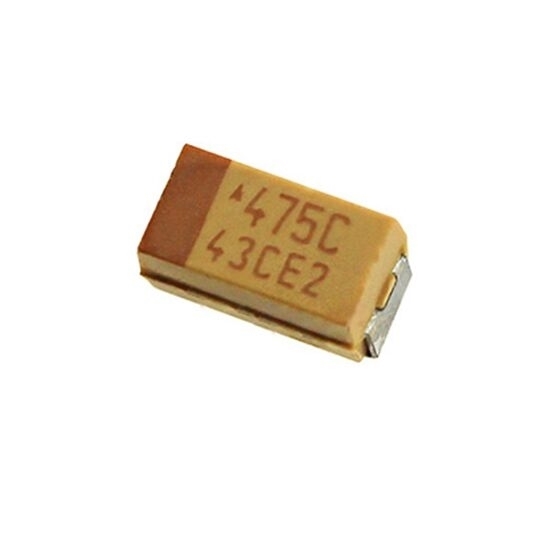

4.7μF 16V SMD Tantalum Capacitor

0 reviews • Write a review

from

$1.58

Ex Tax: $1.58

Stock: In Stock
Model: RDDLZ-TC-047UF16SMD
Weight: 1.00
SKU: RDDLZ-TC-047UF16SMD

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Chip tantalum capacitor is a subtype of electrolytic capacitor. The tantalum advantages are higher capacitance values within a given package size and stability of capacitance with applied DC voltage.

Features:

Small volume and small capacity error
Wide temperature range, high temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high frequency performance

Specification:

Capacitance: 4.7μF
Rated Voltage: 16V
Type: A-SMD
Net Size: 2.2 mm
Height Mounting (Maximum): 4 mm
Equivalent Series Resistance: 1
Tolerance: 10%
Leading Spacing: Leadless
Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 3.2, S= 0.8, W₁= 1.6, W₂= 1.2, H= 1.6

Tips: What is Equivalent Series Resistance (ESR)?

The equivalent series resistance of a capacitor is the internal resistance that appears in series with the capacitance of the device. Almost all capacitors exhibit this property at varying degrees depending on the construction, dielectric materials, quality, and reliability of the capacitor. The equivalent series resistance (ESR) values range from a few milliohms to several ohms, and results into power losses, reduced efficiency, and instability of power supplies and regulators circuits.
