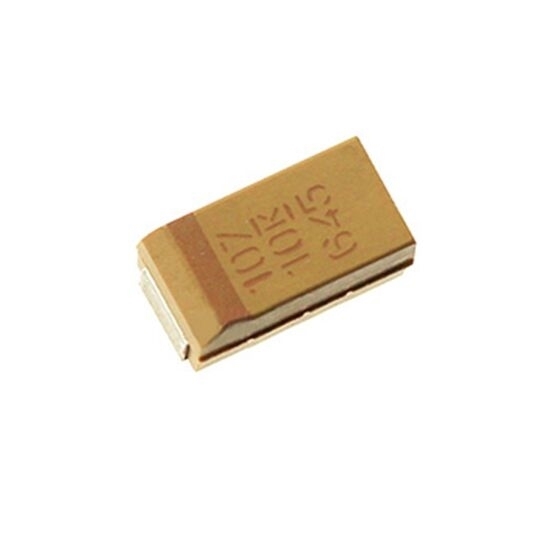

100μF chip tantalum capacitor is a subtype of electrolytic capacitor. Technology advances allow tantalum capacitor to be used in a wide variety of circuits, often found in laptops, automotive industry, cell phones and others.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Capacitance: 100μF
• Rated Voltage: 10V
• Type: C-SMD
• Net Size: 1 mm
• Height Mounting (Maximum): 1 mm
• Equivalent Series Resistance: 1
• Tolerance: 10%
• Leading Spacing: Leadless
• Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 6, S= 1.3, W₁= 3.2, W₂= 2.2, H= 2.5

Tips: Tantalum Capacitor Application

Applications using tantalum capacitors take advantage of their low leakage current, high capacity and long term stability and reliability. For example, they are used in sample and hold circuits which rely on low leakage current to achieve long hold duration. They are also commonly used for power supply filtering on computer motherboards and cell phones due to their small size and long term stability, most often in surface mount form. They are a popular replacement for aluminum electrolytics in military applications because they do not tend to dry out and change capacitance over time. Medical electronics also rely on tantalum because of their high stability. Audio amplifiers sometimes use tantalum capacitors where stability is a critical factor.
