0.1μF Tantalum Capacitor, 35V

0 reviews • Write a review

from

$1.51

Ex Tax: $1.51

Stock: In Stock
Model: RDDLZ-TC-01UF35V
Weight: 1.00
SKU: RDDLZ-TC-01UF35V

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

0.1μF tantalum capacitor is a subtype of electrolytic capacitor. RDDLZ provides high quality and good price tantalum capacitor for you.

Features:

Small volume and small capacity error
Wide temperature range, high temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high frequency performance

Specification:

Nominal Capacity	0.1μF, 35V
Type	DIP	SMD
Equivalent Series Resistance	1
Net Size	1 mm
Height Mounting (Maximum)	1 mm	125 mm
Leading Spacing	2.54 mm	Leadless
Tolerance	10%	20%
Working Temperature	-40 ℃— +125 ℃	-85 ℃— +125 ℃

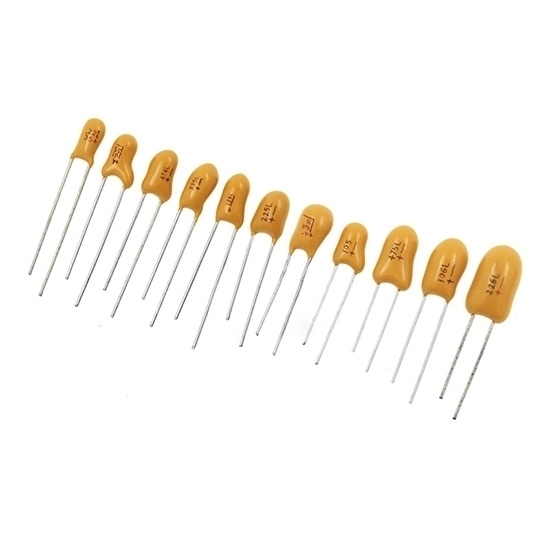

DIP Tantalum Capacitor Dimension: (Unit: mm)

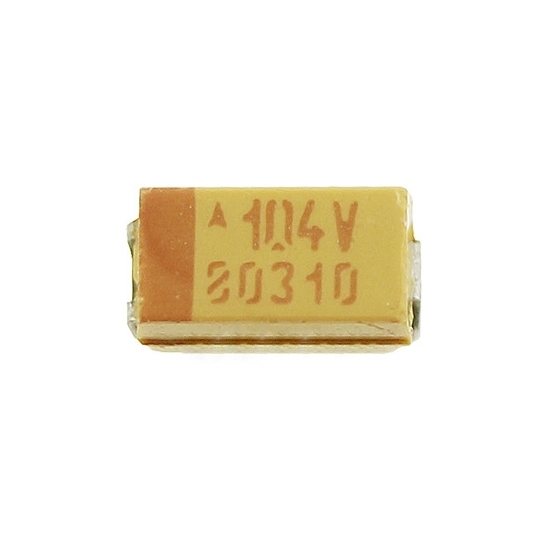

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 3.2, S= 0.8, W₁= 1.6, W₂= 1.2, H= 1.6

Tips: What is Tantalum Capacitor?

Tantalum capacitors are a subtype of electrolytic capacitors. They are made of tantalum metal which acts as an anode, covered by a layer of oxide which acts as the dielectric, surrounded by a conductive cathode. The use of tantalum allows for a very thin dielectric layer. This results in a higher capacitance value per volume, superior frequency characteristics compared to many other types of capacitors and excellent stability over time. Tantalum capacitors are generally polarized, which means that they may only be connected to a DC supply observing the correct terminal polarity. Most often in the form of surface mounted devices (SMD).
