22AWG Hook-Up Wire, UL1007, 300V, 2000 Ft

22AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
22AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
22AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
22AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
22AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
0 reviews • Write a review
from
$165.79
Ex Tax: $165.79
  • Stock: In Stock
  • Model: RDDLZ-UL1007-22
  • Weight: 1.00
  • SKU: RDDLZ-UL1007-22

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

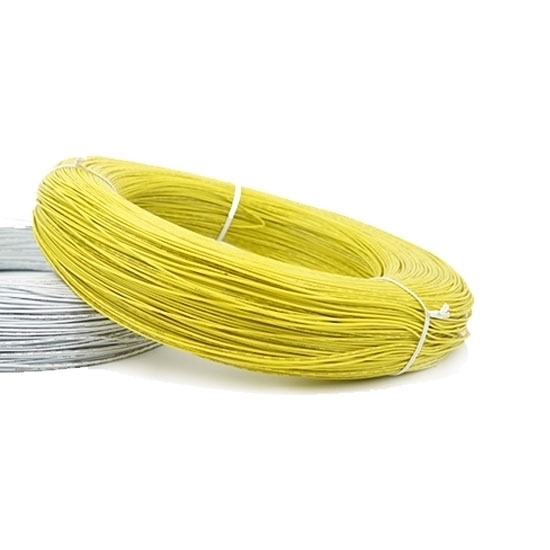

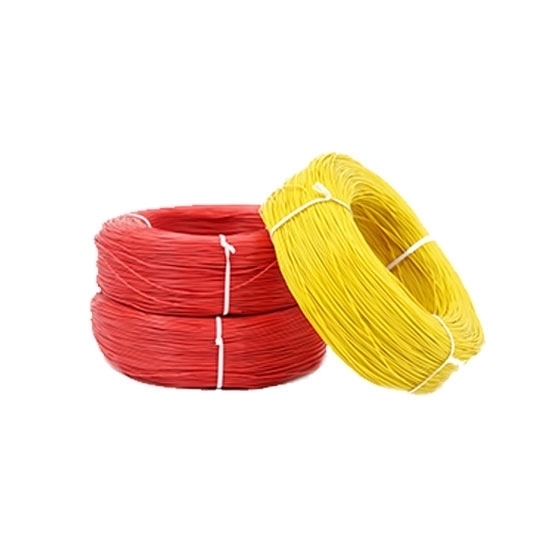

RDDLZ hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

ModelRDDLZ-UL1007-22
UL Style1007
Size22 AWG
Rated Voltage300V
Color (Optional)White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature80 ℃
ConductorTinned/ Bare Copper
Conductor TypeStranded
Conductor Size (±0.005）NO. 7/ 0.254mm
Conductor Resistance 20℃59.40 Ω/km
Conductor Diameter0.76mm
InsulationPVC
Insulation ThicknessNom.0.40mm
Min.0.33mm
Overall DiameterAverage1.56mm
Tolerance±0.1mm
Package2000 ft/roll
Weight6kg

Details

Tips: What are the uses of UL1007 wires?

UL1007 wires are used in automotive industry, mechanical equipment, computers, household appliances, electronic and electrical equipment internal wiring.
