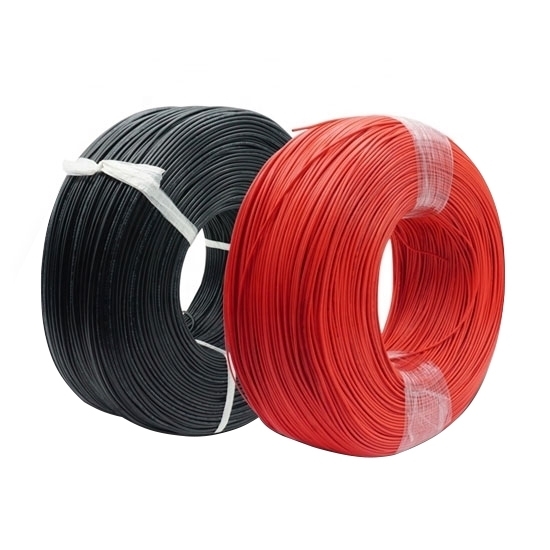

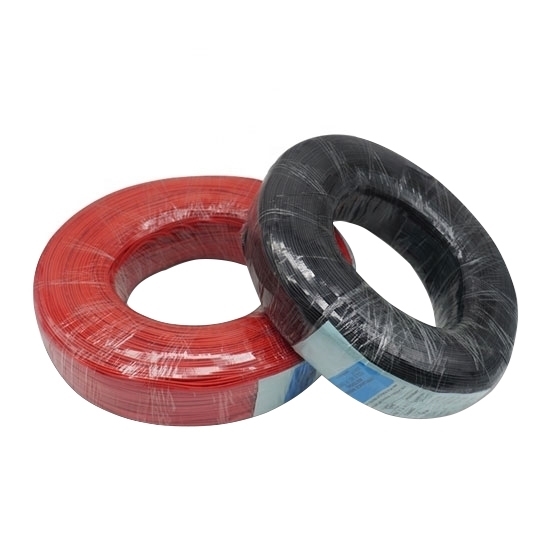

14AWG Hook-Up Wire, UL1015, 600V, 1000 Ft

14AWG Hook-Up Wire, UL1015, 600V, 1000 Ft
14AWG Hook-Up Wire, UL1015, 600V, 1000 Ft
14AWG Hook-Up Wire, UL1015, 600V, 1000 Ft
14AWG Hook-Up Wire, UL1015, 600V, 1000 Ft
14AWG Hook-Up Wire, UL1015, 600V, 1000 Ft
from
$331.79
Ex Tax: $331.79
  • Stock: In Stock
  • Model: RDDLZ-UL1015-14
  • Weight: 1.00
  • SKU: RDDLZ-UL1015-14

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

ModelRDDLZ-UL1015-14
UL Style1015
Size14 AWG
Rated Voltage600V
Color (Optional)White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature105 ℃
ConductorTinned/ Bare Copper
Conductor TypeStranded
Conductor Size (±0.005)NO. 41/ 0.254mm
Conductor Resistance 20℃8.96 Ω/km
Conductor Diameter1.88mm
InsulationPVC
Insulation ThicknessNom.0.80mm
Min.0.69mm
Overall DiameterAverage3.50mm
Tolerance±0.15mm
Package1000 ft/roll
Weight9kg

Details

Tips: How to maintain the UL electrical hook up wire?

  • When using the UL electrical wire, Avoid dampness, heat, corrosion or bruising of the wire, and try to keep it away from wet, overheated, easily corrode and other bad environment.
  • After using the electrical wire for a period of time, regular inspection should be done. If problems are found, it should be replaced in the first time.
  • Do not overload the electrical wires to avoid accidents.
  • Check the use of electrical wire from time to time, if you find problems, you should timely maintain and overhaul it.
  • If it is installed in the old building line, or the line in disrepair, it is better to check whether the wire aging, if you find the problems, ask an electrician for help immediately.
  • Pay special attention to the lines that are easy to be soaked by floods. If necessary, you can ask an electrician to migrate the lines, and take measures such as elevated and moisture-proof for protection.
  • In rainy days, if there is a power failure, the power supply should be cut off immediately. Please ask an electrician to check the cause and send special personnel to take care of it.
  • Regularly clean the dust on the surface of the insulating sleeve. Seriously polluted places should increase the frequency of cleaning accordingly.
  • If the cable or protection pipe has the phenomenon of collision, it should be repaired immediately.
  • If there are cracks and corrosion of the metal sheath of the wire, temporary treatment should be done first and records should be kept so as to plan to maintain and replace.
  • If more than 40% of the outer skin falls off or the armored layer has bare rust, anti-rust paint should be applied to protect it.
