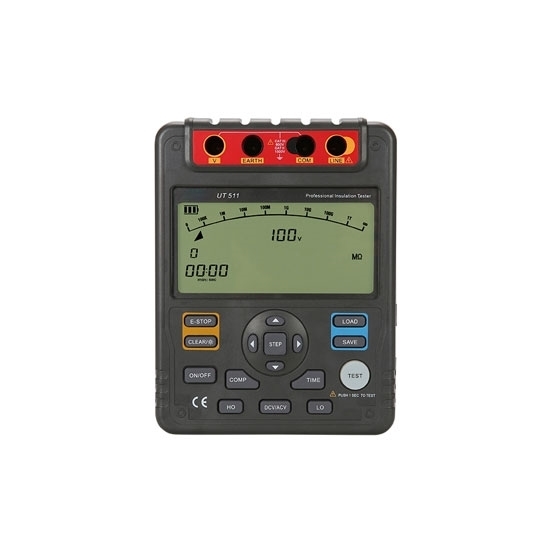

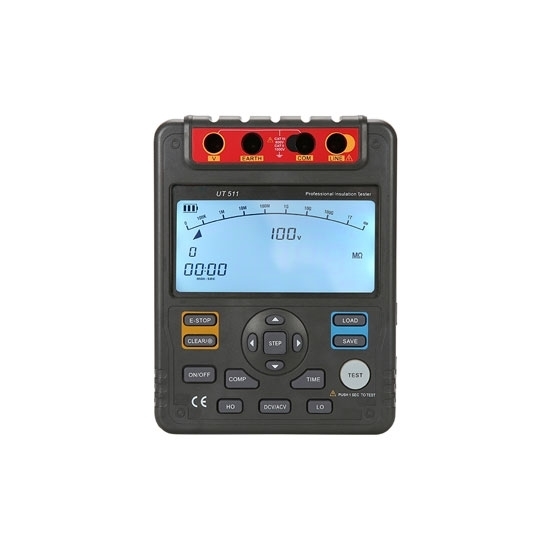

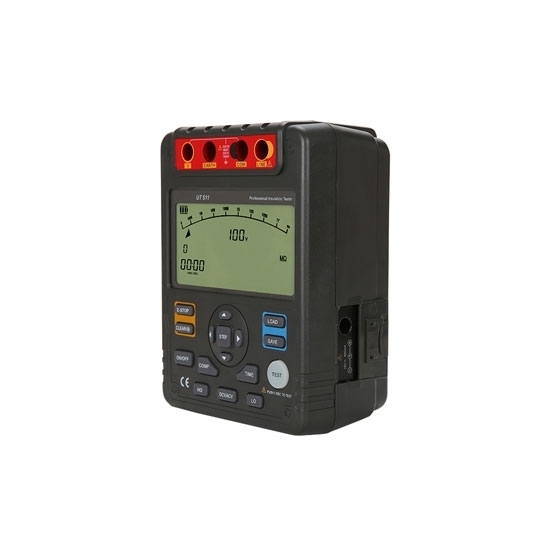

Megger Insulation Tester, 100V/250V/500V/1000V

0 reviews • Write a review

from

$335.72

Ex Tax: $335.72

Stock: In Stock
Model: RDDLZ-IRT-UT511
Weight: 1.00
SKU: RDDLZ-IRT-UT511

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The megger insulation tester can measure the insulation resistance of large transformers, generators, high-voltage motors and so on. The megger can be selected from the test voltages of 100, 250, 500V and 1kV, with the capabilities of testing insulation resistance up to 10 GΩ. High reliability, accuracy and low cost.

Specification

Model	RDDLZ-IRT-UT511
Insulation Resistance (Ω)	Test voltage/accuracy	100V/250V/500V/1000V		0% ~ 20%
	Measurement range/accuracy	100V	0.1 MΩ ~ 500 MΩ	±(3%+5)
		250V	0.5 MΩ ~ 2 GΩ	±(3%+5)
		500V	1 MΩ ~ 4 GΩ	±(3%+5)
		1000V	2 MΩ ~ 10 GΩ	±(3%+5)
	Short-circuit current			<2mA
DC Voltage (V)	Test range/accuracy	1000V		±(2%+3)
AC Voltage (V)	Test range/accuracy	30V ~ 750V (50Hz/60Hz)		±(2%+3)
Low Resistance (Ω)	Range/accuracy	0.1 Ω ~ 999.9 Ω		±(1%+3)
Features	Display	9999 counts
	Auto ranging	Yes
	Auto power off	Yes
	Low battery indication	Yes
	Data storage	18
	Comparison measurement	Yes
	PI	Yes
	DAR	Yes
	LCD backlight	Yes
	Analog bar graph	30
	Over-range warning	Yes
	High voltage indication	Yes
	Timing measurement (around 30 min)	Yes
General	Power supply	1.5V battery (LR14) x 8
	Display size	123mm x 58mm
	Operating temperature	0℃ ~ 40℃ (32℉ ~ 104℉)
	Storage Temperature	-20℃ ~ 60℃ (-4℉ ~ 140℉)
	Relative Humidity	≤85%RH @ 0℃ ~ 40℃ below; ≤90%RH @ -20℃ ~ 60℃
	Product weight	2kg
	Product size	202mm x 155mm x 94mm
	Standard accessories *	2single plug test lead with alligator clip (black and green), 1double plug test lead with alligator clip (red), batteries

Note: * Batteries are Not Included for air shippment.

Insulation Resistance Test Wiring Diagram

Tips: Working principle of insulation resistance tester

Insulation resistance tester, also known as digital insulation tester, Megohmmeter, Megger insulation tester adopts the embedded industrial SCM real-time operating system, with digital analog pointer and digital segment code display in perfect combination. RDDLZ series of Megger insulation meter has a variety of test voltage options, large capacity, strong anti-interference, AC and DC dual-use, simple operation and so on. It is an ideal tool for measuring the insulation resistance of large-capacity transformer, current transformer, generator, high-voltage motor, electric capacitor, power cable and arrester.

Insulation resistance tester is mainly working by using a voltage exciting the tested device or circuit, and then measuring the current generated by the excitation, using ohm's law to obtain the resistance. For example, the testers apply a much higher voltage when making resistance measurements than the ohmmeter capabilities available on a digital multimeter (DMM). Megohmeters usually use voltages ranging from 50V to up to 5kv; a typical DMM has a voltage of less than 10v. For insulation test, it require measuring very large resistance value, the capability up to 10 TΩ, and requires a higher voltage.
