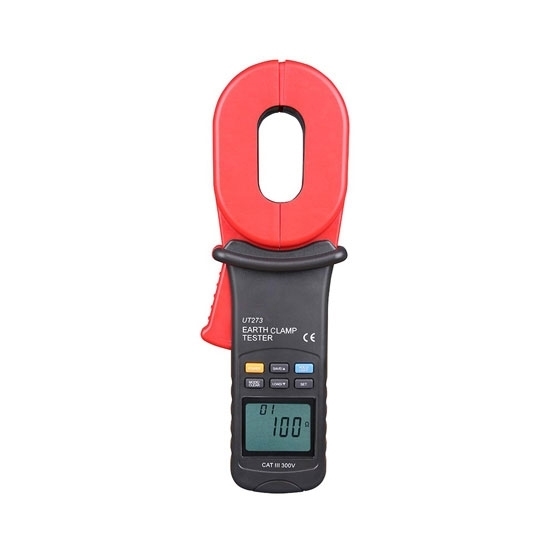

Clamp-on Ground Resistance Tester, 0.01-1000Ω

0 reviews • Write a review

from

$869.23

Ex Tax: $869.23

Stock: In Stock
Model: RDDLZ-GRT-UT273
Weight: 1.00
SKU: RDDLZ-GRT-UT273

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Clamp-on earth ground tester can measure the ground resistance from 0.01Ω to 1000Ω. With the the clamp on the loop, the meter can get the resistance value safely and quickly without disconnecting circuit ground lines or in needless of auxiliary electrodes. This clamp-on ground resistance tester is durable and accurate, suitable for grounding system measurement of electric power system, telecommunication, meteorology, oil field, building and other fields.

Specification

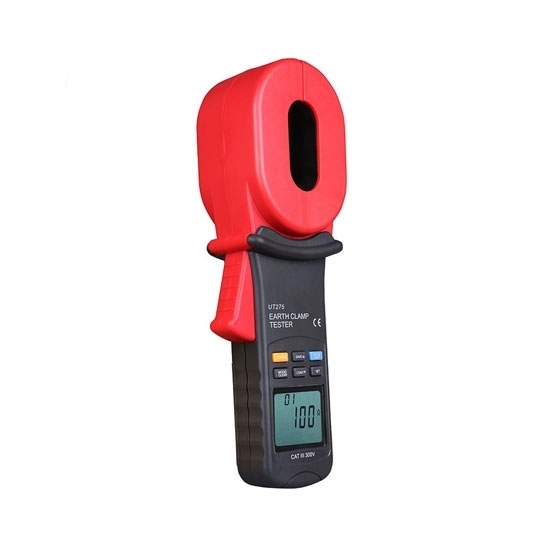

Model		RDDLZ-GRT-UT273	RDDLZ-GRT-UT275
Earth Ground Resistance (Ω)	0.01Ω~0.099Ω	±(1%+0.01)	±(1%+0.01)
	0.1Ω~0.99Ω	±(1%+0.01)	±(1%+0.01)
	1.0Ω~49.9Ω	±(1.5%+0.1)	±(1.5%+0.1)
	50Ω~99.5Ω	±(2%+0.5)	±(2%+0.5)
	100Ω~199Ω	±(3%+1)	±(3%+1)
	200Ω~395Ω	±(10%+5)	±(10%+5)
	400Ω~590Ω	±(20%+10)	±(20%+10)
	600~1000Ω	±(25%+20)	±(25%+20)
Leakage Current (A)	0.00mA~299mA	—	±(2.5%+2mA)
	0.30A~2.99A	—	±(2.5%+100mA)
	3A~30A	—	±(2.5%+100mA)
Features	Display	9999 counts	9999 counts
	Auto range	√	√
	Jaw opening	28mm	28mm
	Auto power off	√	√
	Low battery indication	√	√
	Data hold	√	√
	Data storage	30 sets	30 sets
	Data recall	√	√
	LCD backlight	√	√
	Auto calibration	√	√
General	Power supply	1.5V battery (LR6) x 4
	Display size	47mm x 28.5mm
	Operating temperature	0℃ ~ 40℃
	Operating relative humidity	10%~90%RH non-condensing
	Operating altitude	≤2000m
	Product weight	1.5kg
	Product size	293mm x 90mm x 66mm
	Standard accessories *	Batteries, test ring, carrying box

Note: * Batteries are Not Included for air shippment.

Details

Tips: Measuring principle of clamp-on ground resistance tester

1. Resistance measurement principle

The basic principle of measuring ground resistance with a clamp-on earth ground tester is measuring loop resistance. The jaw part of the clamp meter is composed of voltage coil and current coil. The voltage coil provides the excitation signal and induces a potential E on the circuit under test. Under the action of potential E, current I will be generated in the circuit under test. The clamp ground tester measures E and I, and through the formula R=E/I, the measured resistance R can be obtained.

2. Principle of current measurement

The basic principle of measuring the current of the clamp-on ground resistance meter is the same as that of the current transformer. AC current I of the measured wire generates an induced current I₁ through the current magnetic ring and current coil of the clamp. I₁ is measured by the clamp meter. The measured current I can be obtained by formula I=n* I1 (n is the turns ratio of the coil between the auxiliary side and the original side).
