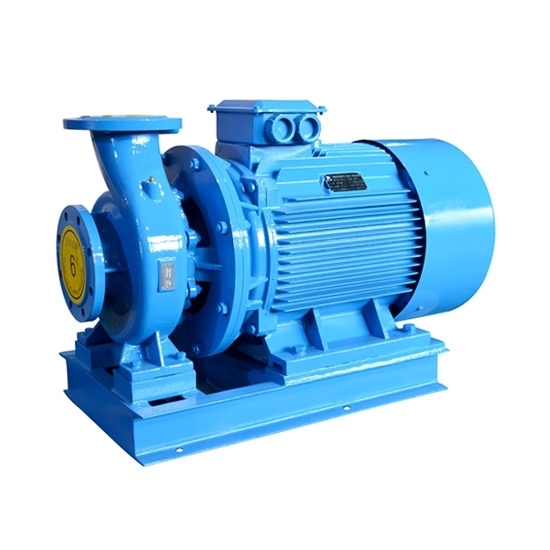

40 Hp Horizontal Centrifugal Pump, Single Stage

0 reviews • Write a review

from

$5,597.07

Ex Tax: $5,597.07

Stock: In Stock
Model: RDDLZ-HCP-030kW
Weight: 1.00
SKU: RDDLZ-HCP-030kW

Available Options

Input Voltage (Three Phase)

Input Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single stage centrifugal pump has optional input voltage AC 220V/ 230V/ 380V/ 400V/ 415V/ 460V to 480V, optional input frequency 50Hz/ 60Hz, 315mm nominal diameter of impeller, 0°, 90° and 180° installation angle of outlet.

Features:

The centrifugal pump has the horizontal structure. The diameter of the inlet and outlet are the same. If a protective cover is added, it can be used in the open air.
It is easy to install and maintain. No need to dismantle pipeline system, just lifting off the conjunction flat nut of vertical pump. Then all the rotor parts can be taken out.
Horizontal centrifugal pump can be operating in series and parallel connection according to the requirements of flow and head.
The installation angle of pump outlet can be 0°, 90° and 180° to meet different connection occasions.

Specification

Model: RDDLZ-HCP-65-315
Power: 40 hp (30 kW)
Number of stages: Single stage
Input voltage: AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
Input frequency: 50Hz/ 60Hz
Inlet diameter: 65mm (2-1/ 2 inch)
Outlet diameter: 65mm (2-1/ 2 inch)
Flow (min. flow to max. flow): 17.5 m³/ h (77gpm), 25 m³/ h (110gpm), 32.5 m³/ h (143gpm)
Head (max. head to min. head): 127m (417ft), 125m (410ft), 122m (400ft)
Efficiency: 32%/ 40%/ 44%
Nominal diameter of impeller: 315mm
Size: 570*930*390mm
Weight: 320kg

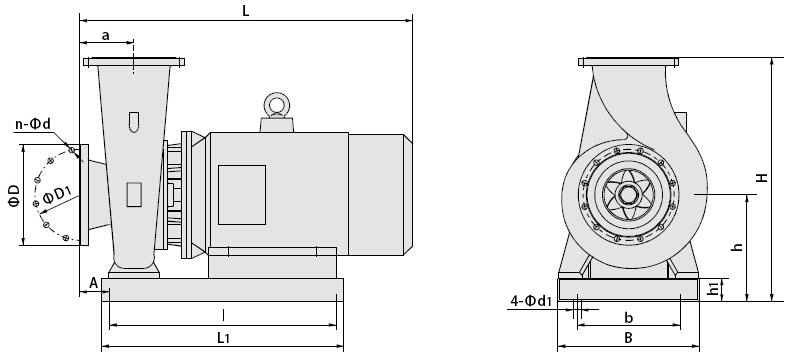

Dimension (mm)

Boundary dimension	h	H	L	a	A
Boundary dimension	300	570	930	125	100
Base dimension	L1	B	I	b	h1	4-φd1
Base dimension	700	390	620	290	100	4-φ20
Flange dimension	D	D1	n-φd
Flange dimension	φ185	φ145	4-φ18

Tips: What is the Single-stage Centrifugal Pump?

The single-stage pump refers to a pump with only one impeller. The general single-stage pump has a high head of 125 meters (410ft). It has the advantages such as the simple structure, stable performance, high speed, small size, light weight, high efficiency, large flow, easy operation and maintenance and so on.

Classification of the single-stage centrifugal pump

According to the installation position of the motor, it is classified into: horizontal single-stage pump and vertical single-stage pump.
According to the flow pass of suction, it is classified into: single-stage single-suction centrifugal pump, single-stage double-suction centrifugal pump.
