Double Acting Compact Hydraulic Cylinder, 3/4 Inch (20mm) Stroke

0 reviews • Write a review

from

$288.29

Ex Tax: $288.29

Stock: In Stock
Model: RDDLZ-CHC-20MM
Weight: 1.00
SKU: RDDLZ-CHC-20MM

Available Options

Short Description

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

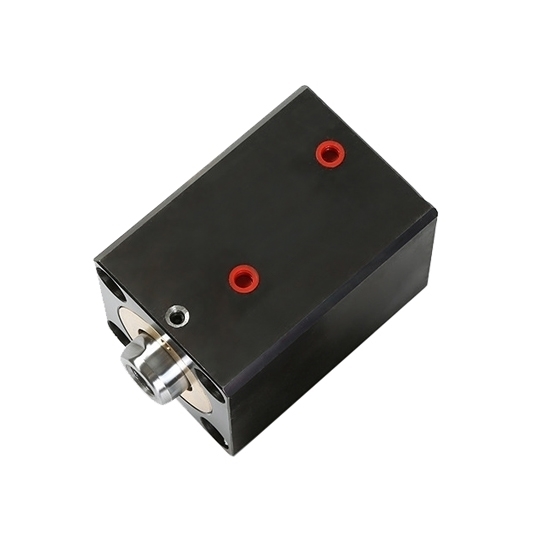

20mm stroke double acting compact hydraulic cylinders offer a space-efficient solution for converting fluid power into linear motion, finding application in diverse industries where limited space and high performance are crucial considerations.

Specification

Model	RDDLZ-CX-SD2020	RDDLZ-CX-SD2520	RDDLZ-CX-SD3220	RDDLZ-CX-SD4020	RDDLZ-CX-SD5020	RDDLZ-CX-SD6320	RDDLZ-CX-SD8020	RDDLZ-CX-SD10020
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	3/4 inch (20mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: What are the advantages of using compact hydraulic cylinders?

Compact hydraulic cylinders offer several advantages in various applications. Firstly, their small size and lightweight design make them ideal for use in tight spaces where traditional cylinders may not fit. This enhances flexibility in system design. Additionally, compact hydraulic cylinders provide high force in a confined space, making them suitable for applications with size constraints.

Their reduced weight contributes to energy efficiency and easier handling during installation and maintenance. The compact design also results in lower inertia, allowing for faster response times and improved dynamic performance. These cylinders often feature precision engineering, ensuring precise control and positioning accuracy. Furthermore, compact hydraulic cylinders are known for their durability and reliability, contributing to longer service life and reduced maintenance costs. Overall, the advantages of compact hydraulic cylinders include space efficiency, high force output, energy efficiency, and enhanced performance in a wide range of applications.
