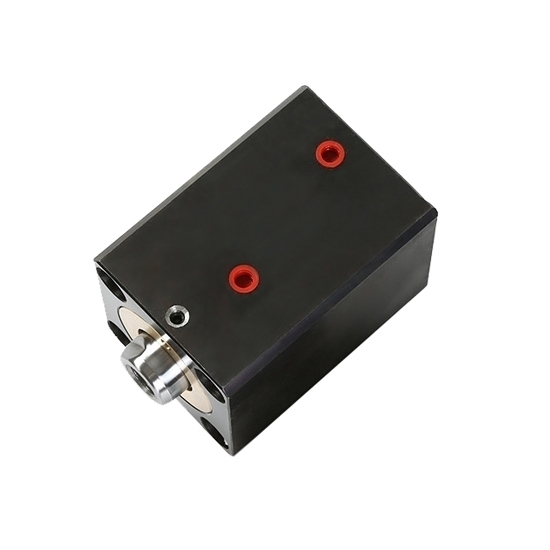

Double Acting Compact Hydraulic Cylinder, 2 Inch (50mm) Stroke

0 reviews • Write a review

from

$473.69

Ex Tax: $473.69

Stock: In Stock
Model: RDDLZ-CHC-50MM
Weight: 1.00
SKU: RDDLZ-CHC-50MM

Available Options

Short Description

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ compact hydraulic cylinder is employed in applications like clamping, lifting, and positioning. The compact design contributes to faster response times and precise control, making it ideal for tasks requiring accuracy.

Specification

Model	RDDLZ-CX-SD2050	RDDLZ-CX-SD2550	RDDLZ-CX-SD3250	RDDLZ-CX-SD4050	RDDLZ-CX-SD5050	RDDLZ-CX-SD6350	RDDLZ-CX-SD8050	RDDLZ-CX-SD10050
Bore Diameter	20mm	25mm	32mm	40mm	50mm	63mm	80mm	100mm
Stroke	2 inch (50mm)
Working Fluid	Hydraulic Oil
Working Pressure	3~140kg·f/cm
Pressure Resistant	210kg·f/cm
Working Speed	8~100mm/sec
Working Temperature	-10~70℃

Note: If you need to customize compact hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

Bore Diameter	A	B	C	CL	D	SW	E	F	H	K	M	N	P1	P2	R	PT
φ20	51	43	8	6	12	10	44	30	5.5	5.6	9	M81.2512D	22.5	11	5	1/8
φ25	53	45	8	6	14	12	50	36	5.5	5.6	9	M101.515D	23	12	5	1/8
φ32	64	54	10	7	20	17	62	47	6.5	6.8	11	M121.7515D	28	14	10	1/4
φ40	65	55	10	7	25	22	70	52	9	9	14	M162.020D	28	15	10	1/4
φ50	71	60	11	8	30	27	80	58	11	11	18	M202.525D	29.5	18	10	1/4
φ63	80	67	13	10	35	32	94	69	13	13	20	M273.035D	61	20	10	3/8
φ80	95	78	17	14	40	35	114	86	15	15	22	M303.535D	66	27	15	3/8
φ100	99	82	17	14	45	40	134	102	17.5	18	26	M364.040D	36	27	15	3/8

Tips: How does a compact hydraulic cylinder work?

A compact hydraulic cylinder operates on the principle of transmitting force through a fluid to generate linear motion. It consists of a cylindrical barrel, a piston, and hydraulic fluid. When hydraulic fluid is pressurized and introduced into one end of the cylinder, it exerts force on the piston, causing it to move along the cylinder's axis. This motion is then used to perform mechanical work, such as lifting or pushing loads. The compact design is achieved by integrating the hydraulic components into a small space without compromising performance. The cylinder's compactness is beneficial for applications with limited space, providing a versatile solution for various industrial and mobile machinery applications, where space constraints are a critical factor.
