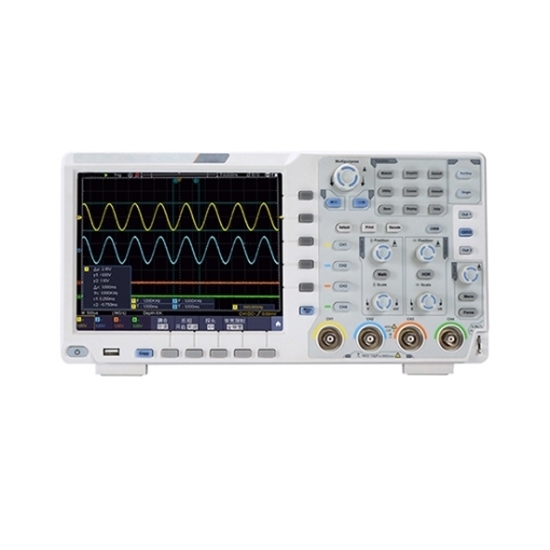

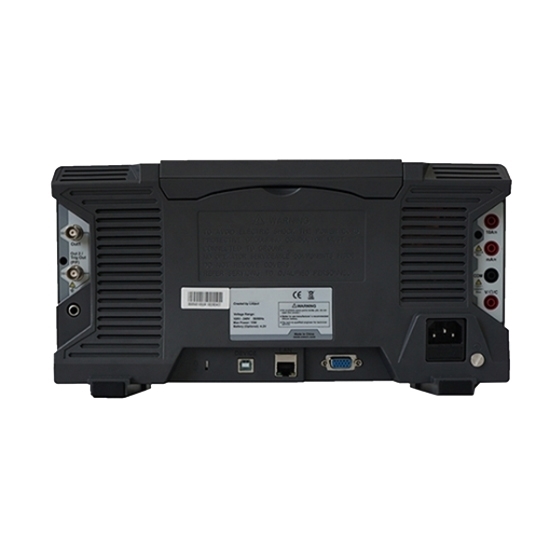

100 MHz Digital Oscilloscope, 4 Channels, 1 GSa/s

0 reviews • Write a review

from

$1,318.41

Ex Tax: $1,318.41

Stock: In Stock
Model: RDDLZ-SCOPE-100M4
Weight: 1.00
SKU: RDDLZ-SCOPE-100M4

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price 4-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling rate. The oscilloscope with USB design, which can improve work efficiency, and convenient for storage.

Specification

Model	RDDLZ-EDS-302C
Bandwidth	300 MHz
Channel	2+ external trigger
Sample rate	2.5 GSa/s
Acquisition model	Sample, Peak detect
Record length	10M
Display	8 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	1ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤5.8ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34015570mm
Weight	1.8kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Application

Tips: What is the difference between a digital oscilloscope and an analog oscilloscope?

The main difference between analog and digital oscilloscopes is that in digital Oscilloscopes, the analog signal is captured and converted into a digital signal using an analog to digital converter. The advantage of using digital oscilloscopes is that you can easily store digital data in digital memory.
