20 MHz Digital Oscilloscope, 2 Channels, 100 MSa/s

0 reviews • Write a review

from

$514.60

Ex Tax: $514.60

Stock: In Stock
Model: RDDLZ-SCOPE-20M
Weight: 1.00
SKU: RDDLZ-SCOPE-20M

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

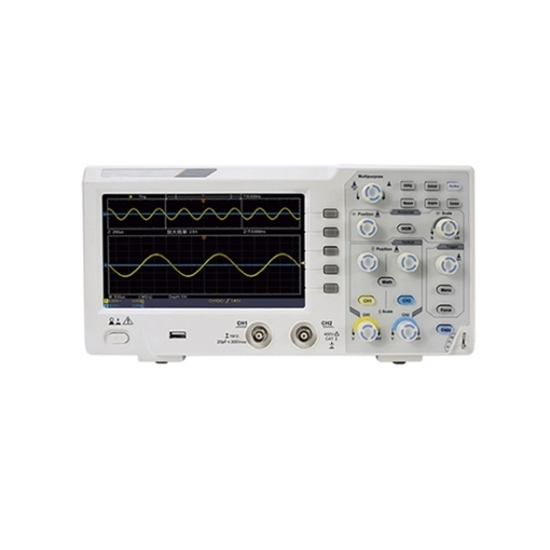

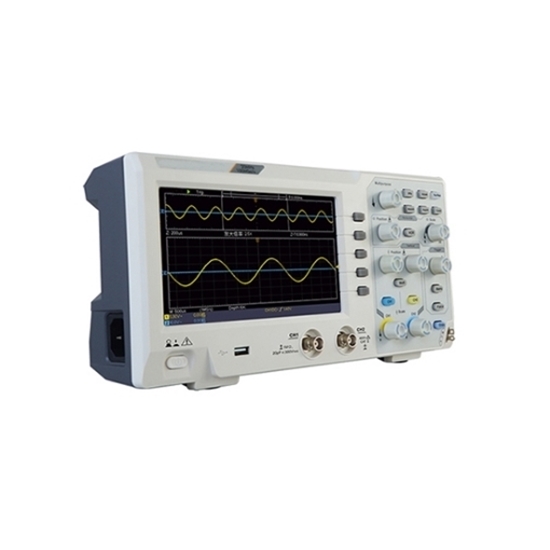

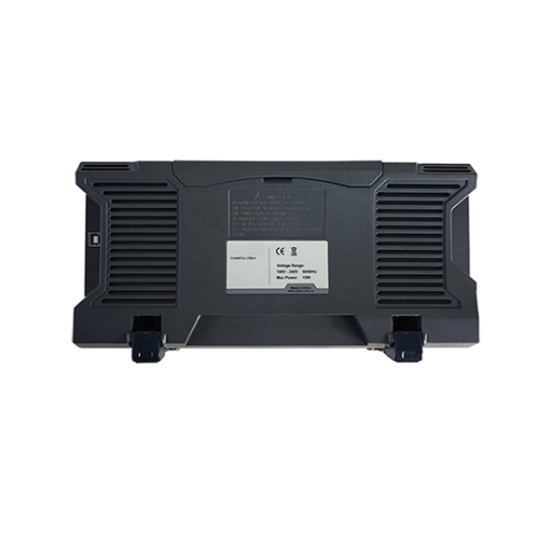

Digital storage oscilloscope with 20 MHz bandwidth, 2 channels, 100 MSa/s sampling rate, 7 inches color LCD screen. The oscilloscope with innovative design, compact appearance, and abundant functionalities together facilitate people to easily solve complex measurement issues.

Specification

Model	RDDLZ-NDS-1022S
Bandwidth	20 MHz
Channel	2 Channel
Sample rate	100 MSa/s
Acquisition model	Sample, Peak detect
Record length	10K
Display	7 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 20pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz/ Full bandwidth
Sampling rate range	5ns/div ~ 1000s/div, step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	5mV/div~5V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤17.5ns
Trigger type	Edge
Trigger model	Auto, Normal, Single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	30115270mm
Weight	1.1kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Dimension

Details

Tips: What is a digital oscilloscope used for?

The oscilloscope is used for electronics measurements, particularly for waveform measurements on analog circuits. The principle is that a CRT beam is deflected horizontally by a sawtooth waveform, the timebase, while the vertical deflection is caused by an input signal.
