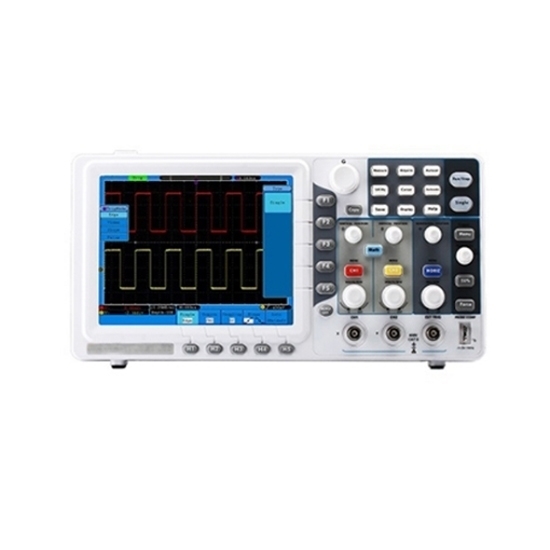

200 MHz Digital Oscilloscope, 2 Channels, 2 GSa/s

0 reviews • Write a review

from

$1,517.78

Ex Tax: $1,517.78

Stock: In Stock
Model: RDDLZ-SCOPE-200M2
Weight: 1.00
SKU: RDDLZ-SCOPE-200M2

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dual channel digital oscilloscope is a 2 channels oscilloscope, with 200 MHz bandwidth, 2 GSa/s sampling rate and 8 bits vertical resolution. The DSO oscilloscope has a pass/ fail function and trigger synchronous output function, and current measurement function.

Specification

Model	RDDLZ-EDS-202C
Bandwidth	200 MHz
Channel	2+ external trigger
Sample rate	2 GSa/s
Acquisition model	Sample, Peak detect
Record length	10M
Display	8 inch LCD
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Probe attenuation	1X, 10X, 100X, 1000X
Input Impedance	1MΩ ± 2%, in parallel with 15pF ± 5pF
Max. input voltage	400V (DC+AC, PK - PK)
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	2ns/div ~ 100s/div,step by 1-2-5
Vertical Resolution	8 bits
Sensitivity Resolution	2mV/div~10V/div
Low Frequency（-3db）	≥10 Hz (at input, AC coupling)
Rise time (at input, Typical)	≤1.7ns
Trigger type	Edge
Trigger model	Auto, Normal, single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Dimension	34015570mm
Weight	1.8kg

Accessories

Power cable
USB cable
Probe
Probe Adjust
Quick Guide

Dimension

Details

Tips: Some transient signals of the digital oscilloscope are lost, how to capture and reproduce them?

Set it to single-shot acquisition mode (trigger mode is set to Normal, trigger condition is set to edge trigger, and trigger level is adjusted to an appropriate value, and then sweep mode is set to single-shot mode), note that the storage depth of the oscilloscope will determine your The time at which the signal can be acquired and the maximum sampling rate that can be used.
